Cannondale

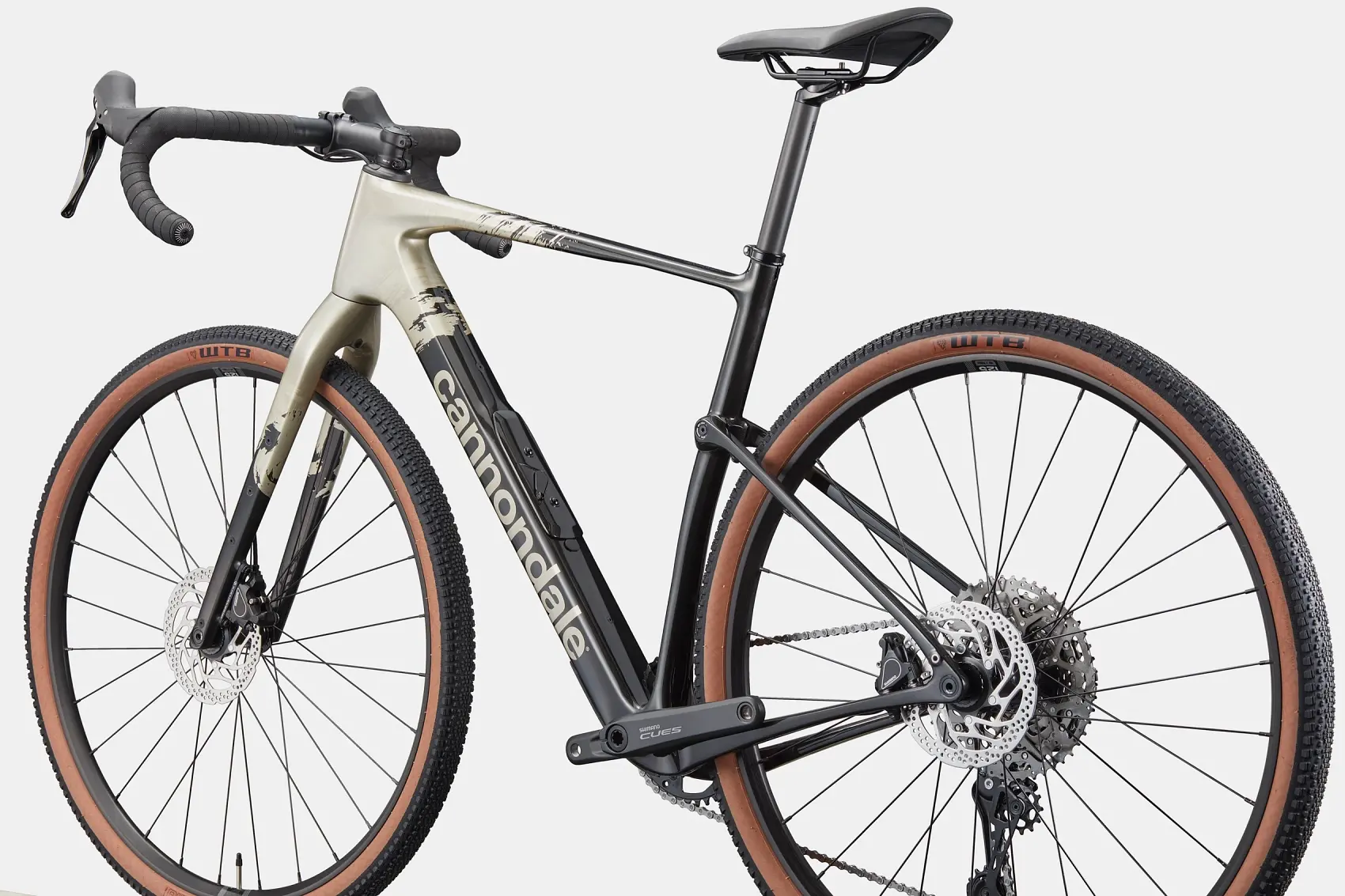

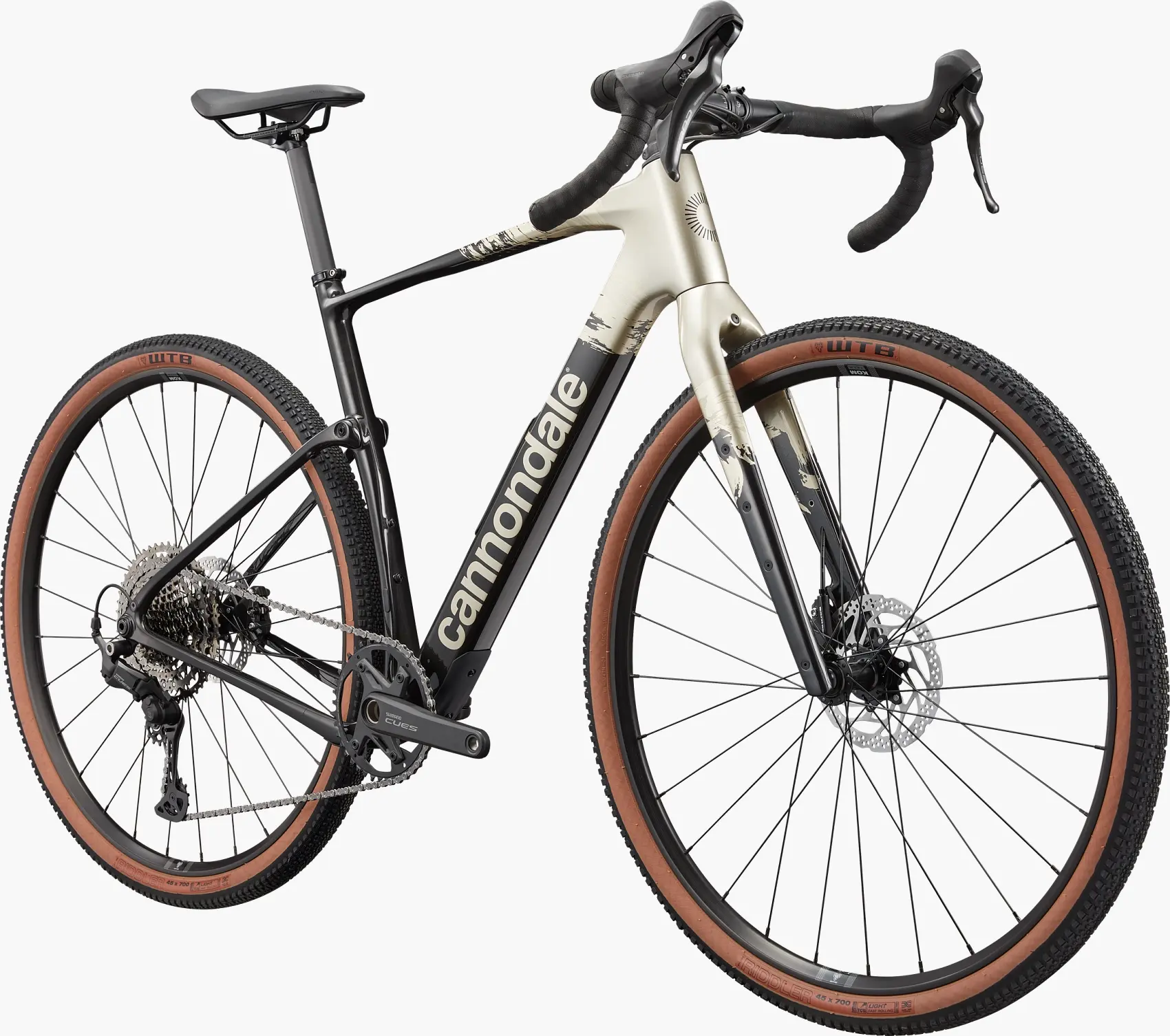

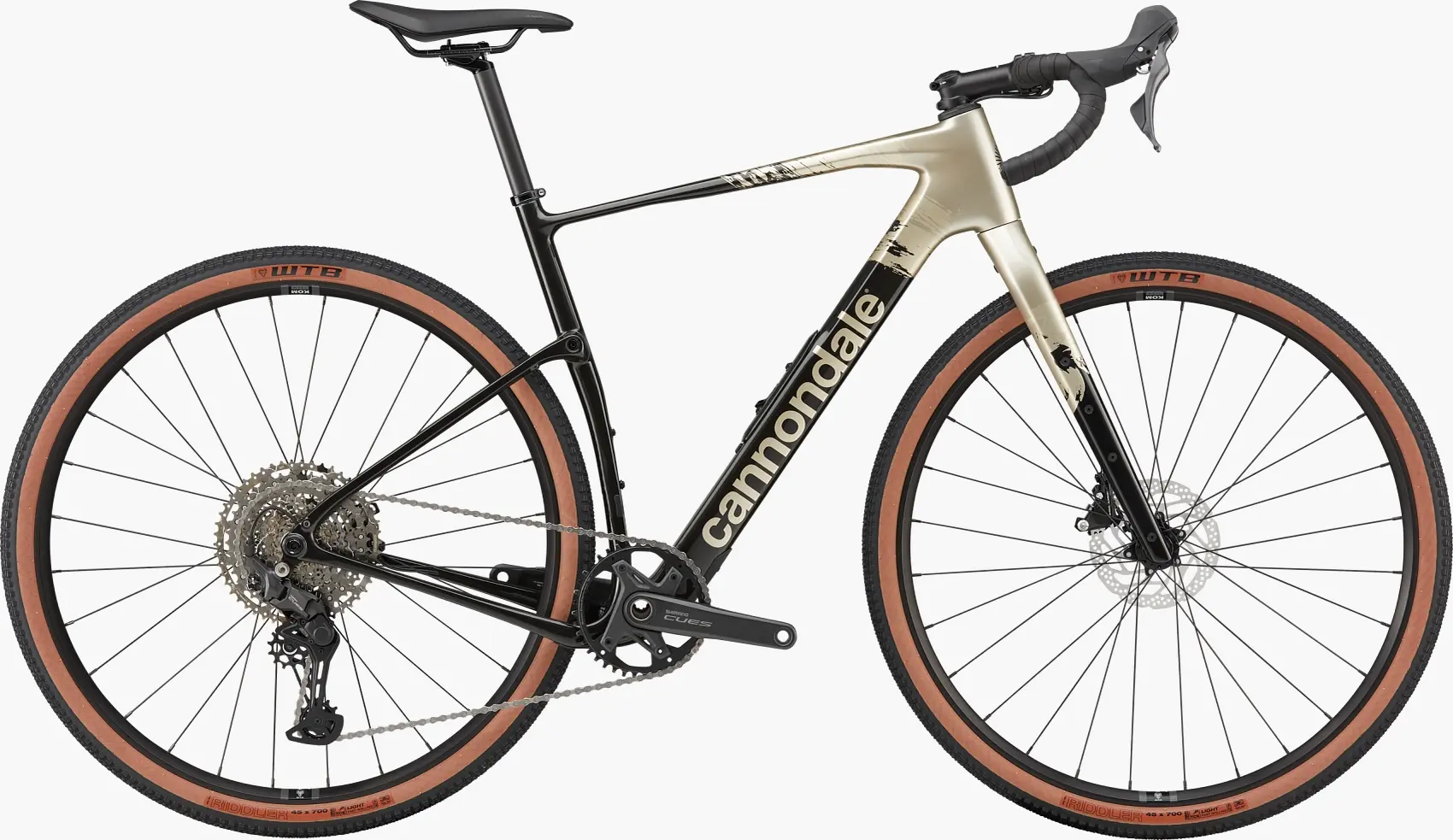

Cannondale Topstone Carbon 4 CUES-1X

$3,999.00
In stock

Our take on the ultimate all-round gravel bike. Go anywhere, bring everything and then keep on going.

Add to wishlist

Description



Model Description

Cue up some serious gravel performance. With its bump-smoothing KingPin carbon frame, Shimano CUES U6000 1x11-speed shifting, CUES hydraulic disc brakes, gear mounts and 700x45mm tires, this rig is ready for gravel-riding, bikepacking or backroad exploring. Confidence comes standard.

What it's for

Gravel riding & racing, bikepacking, singletrack exploration, getting after it beyond the pavement’s end

Highlights

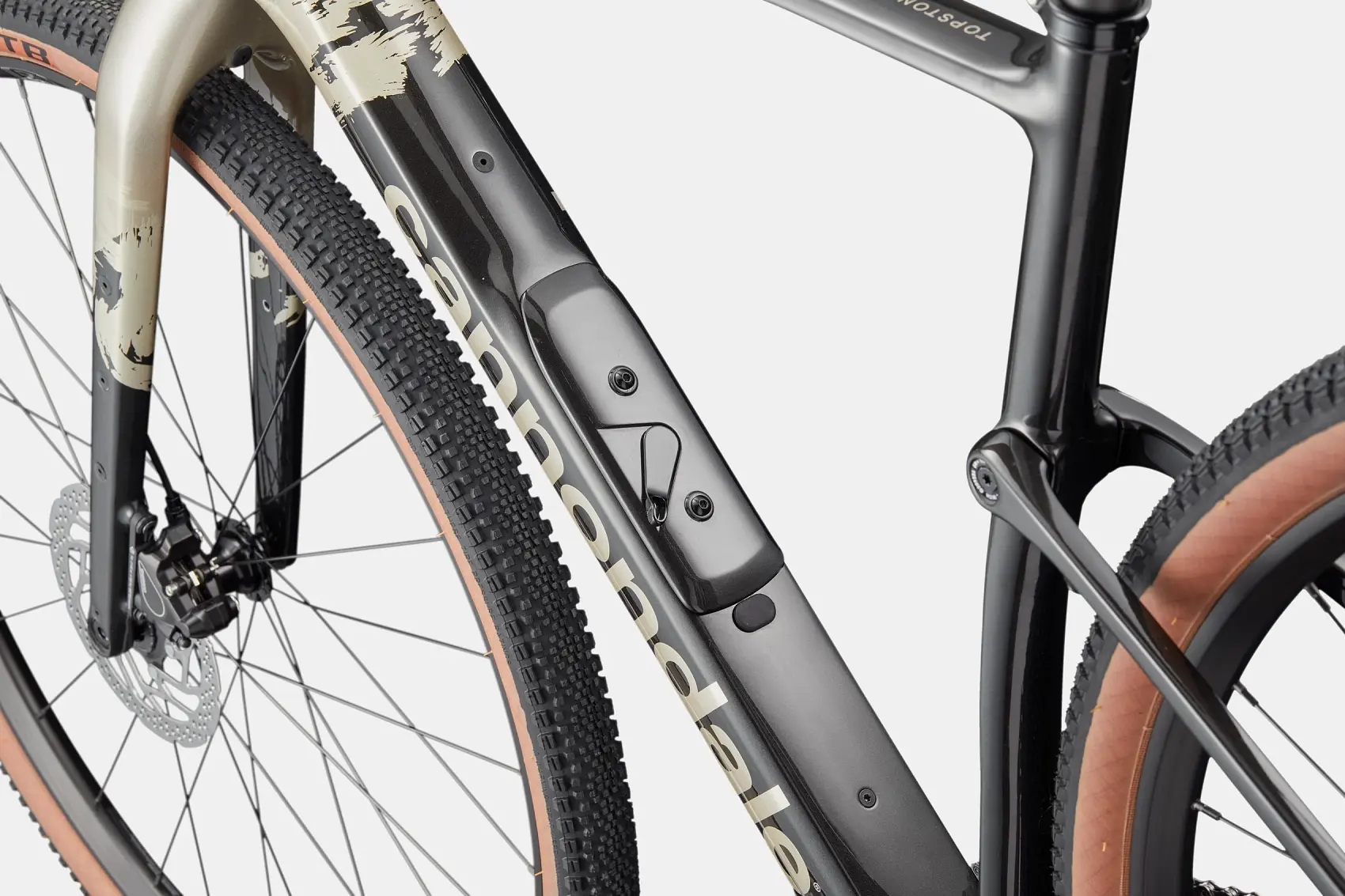

  • Lightweight full carbon frameset with Kingpin rear suspension, Proportional Response size-specific construction and StashPort downtube storage
  • Durable, reliable, wide-range, 1x11-speed shifting from Shimano’s new CUES U6000 group
  • Powerful, controllable braking from Shimano’s CUES hydraulic disc brakes
  • Durable, dependable WTB ST i25 rims, with Shimano hubs and WTB Riddler 42c tubeless ready gravel tires
  • Cannondale 3 flared handlebars offer comfortable, gravel-friendly hand positions

Details


Platform Topstone Carbon
Model Name Topstone Carbon 4 CUES - 1x
Model Code
C1523GU


Frameset


Frame Topstone Carbon, Kingpin suspension system, Proportional Response construction, downtube StashPort, internal cable routing, 12x142mm thru-axle, 27.2 dropper post ready, UDH, BSA 68mm threaded BB, flat mount disc, removable fender bridge, multiple gear/bottle mounts
Fork Topstone Carbon, 1-1/8" to 1.5" steerer, 55mm OutFront offset, flat mount disc, internal routing, 12x100 thru-axle, triple bottle/gear mounts, fender mounts
Headset
Acros IS52/40 ICR


Drivetrain

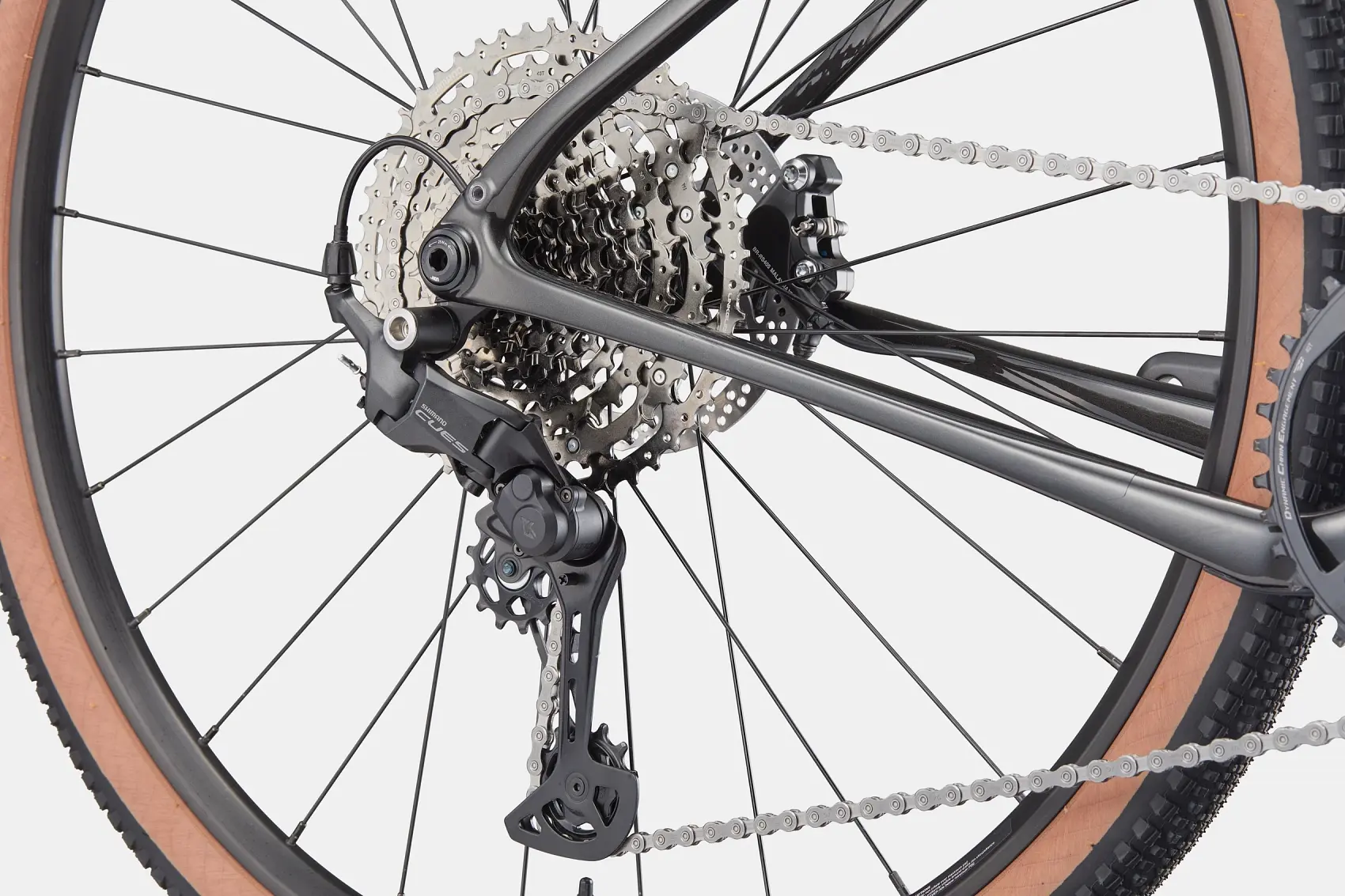

Rear Derailleur Shimano CUES U6000, Shadow RD+, 11-speed
Shifters Shimano CUES U6030, 11-speed
Chain Shimano LG500, LinkGlide, 11-speed

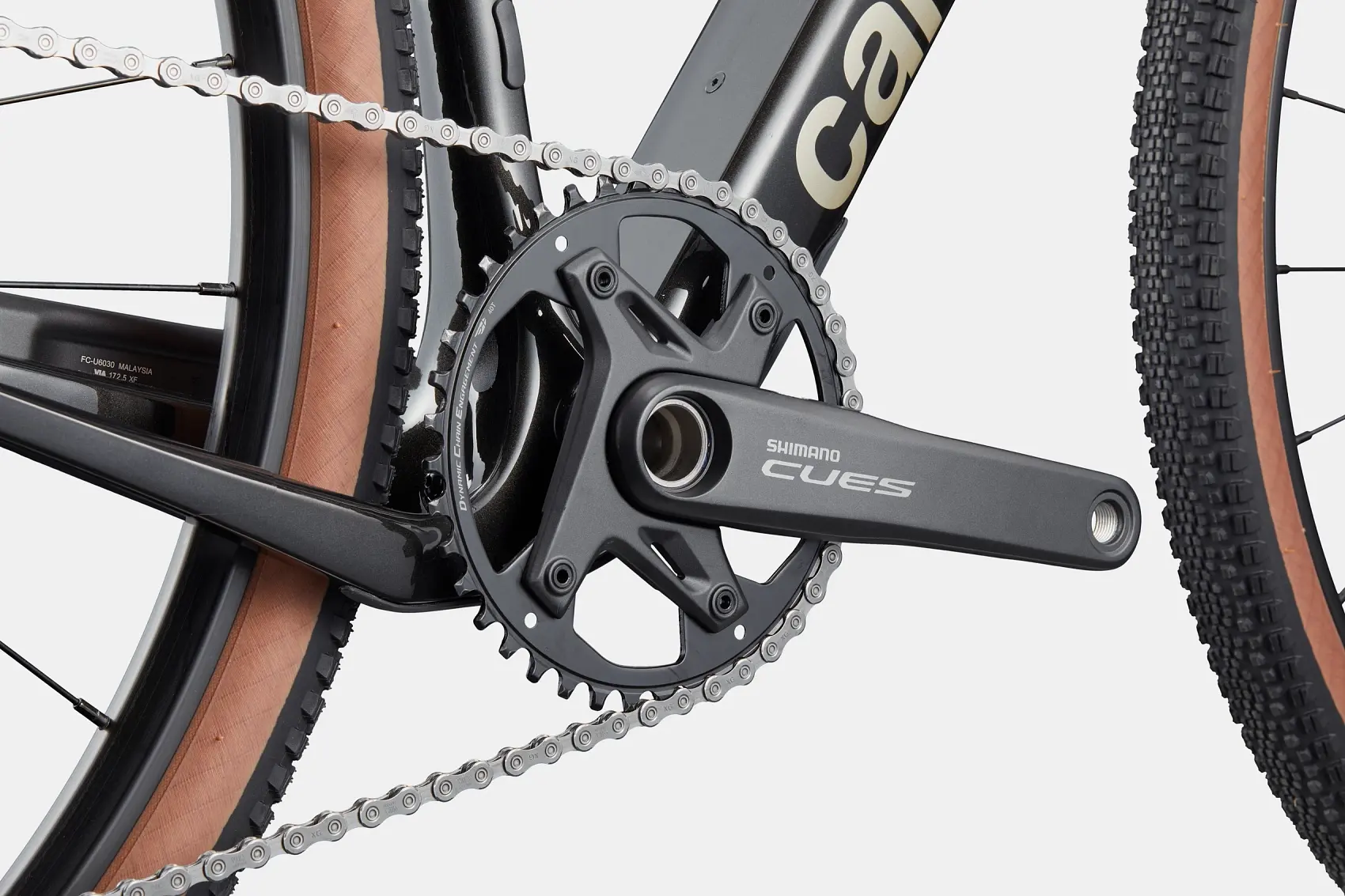

Crank Shimano CUES 6030, 40T: 165mm (47cm), 170mm (51cm), 172.5 (54-56cm), 175mm (58-61cm)
Rear Cogs Shimano CUES LG400, 11-50, 11-speed
Bottom Bracket Shimano BSA 68


Brakes


Brakes Shimano CUES RS405 hydraulic disc, 160/160mm RT30 rotors
Brake Levers Shimano CUES U6030 hydraulic disc


Wheels


Rims WTB ST i25 TCS, 28h, tubeless ready
Spokes Stainless Steel, 14g
Tires WTB Riddler TCS Light, 700x45c, tubeless ready
Tire Size 45
Wheel Size 700c
Hubs Shimano TC500, centerlock, (F) 12x100mm, (R) 12x142mm


Components

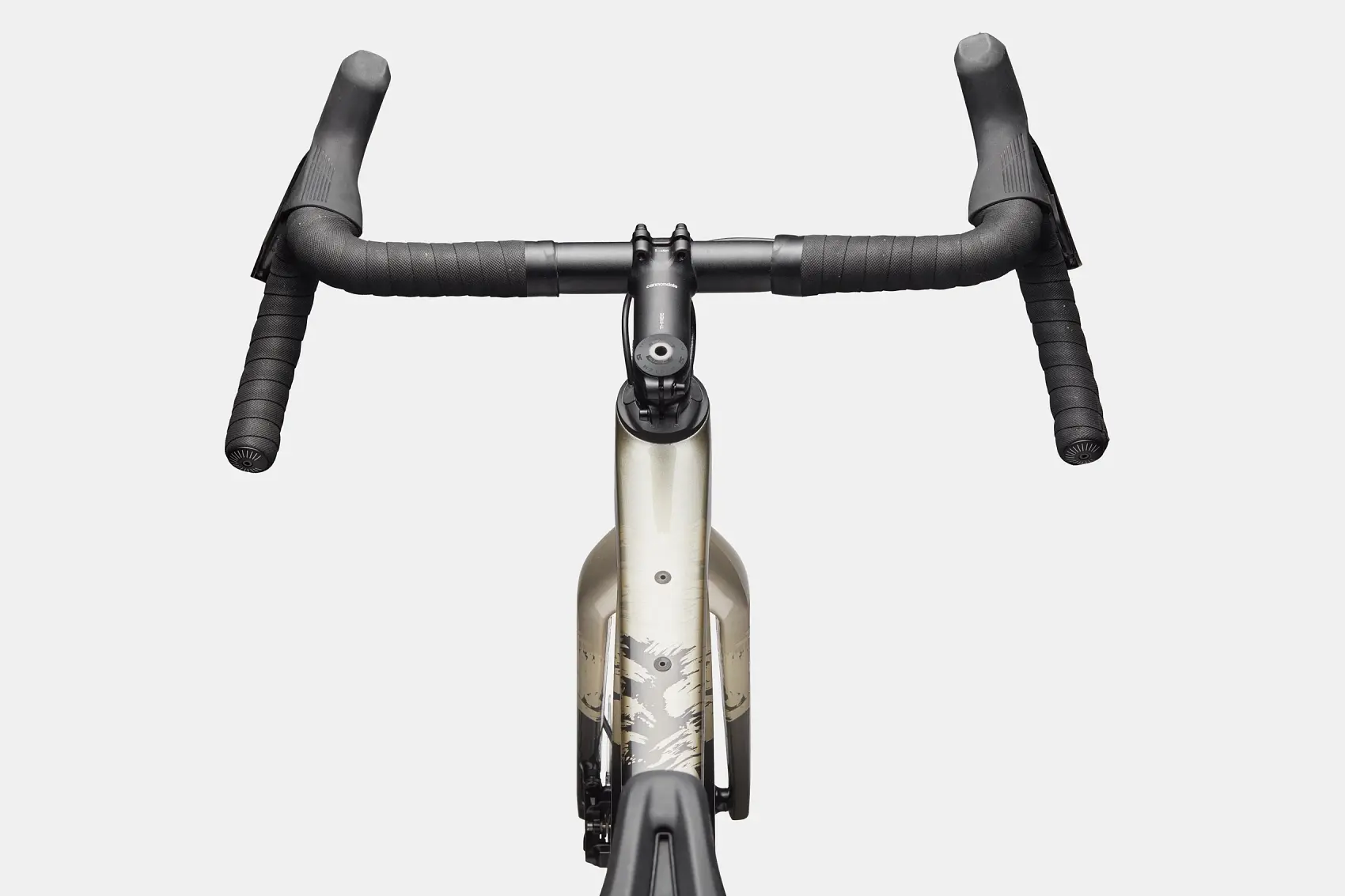

Handlebar Cannondale 3, butted 6061 Alloy, 16 deg flare, 120mm drop: 400mm (47cm), 420mm (51-54), 440mm (56-61cm)
Stem Cannondale 3, 6061 Alloy, 31.8, 7°: 70mm (47-51m), 80mm (54cm), 90mm (56-58cm), 100mm (61cm)
Grips Cannondale KnurlCork, 2.7mm
Saddle Selle Royal SRX Open, 148mm
Seatpost Cannondale 3, 6061 Alloy, 27.2x350mm


Extra


Extra 1 Large StashBag downtube storage bag, tubeless valves
