No matter who you are or how you ride, SuperSix EVO inspires the most combative riders to go faster - everywhere.

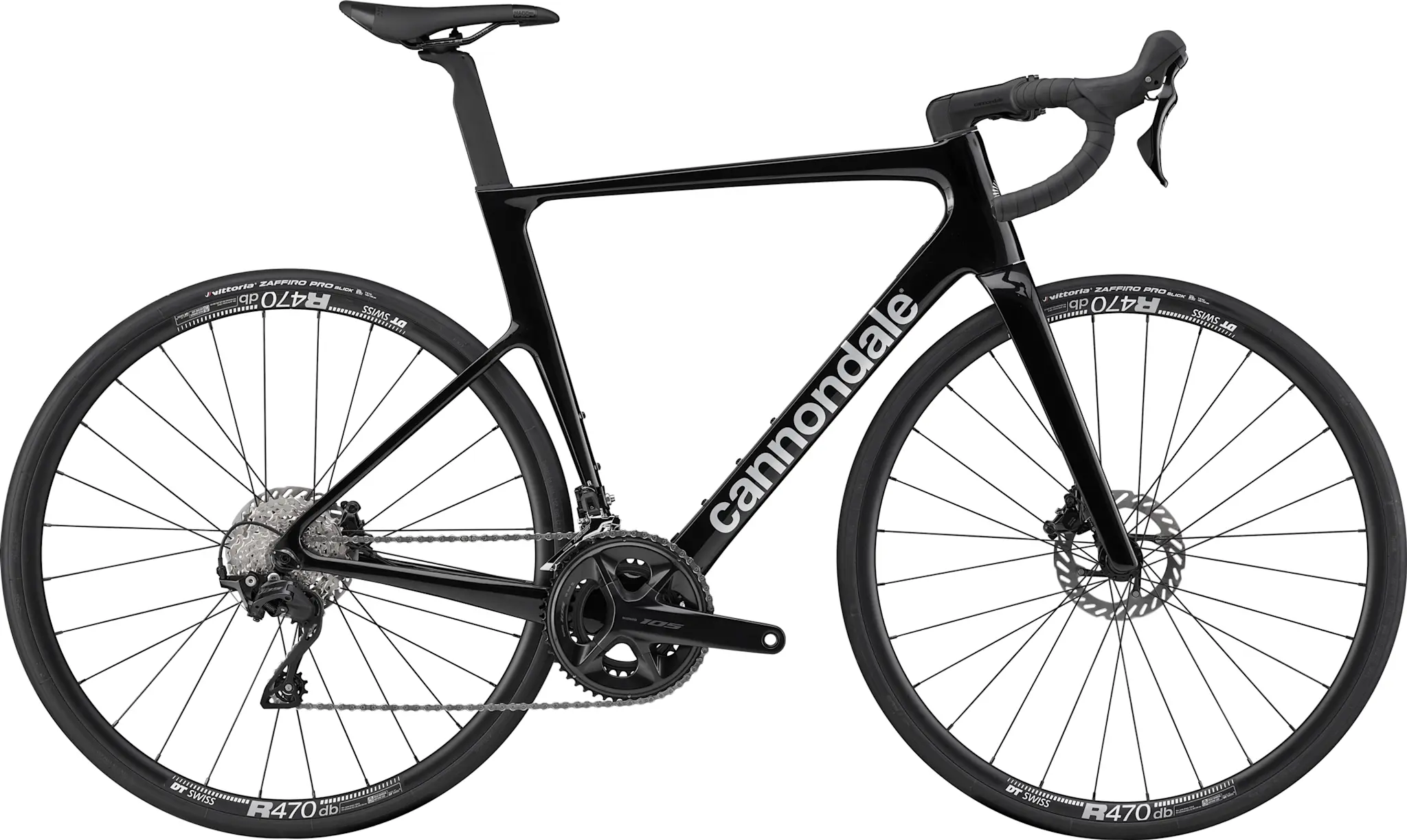

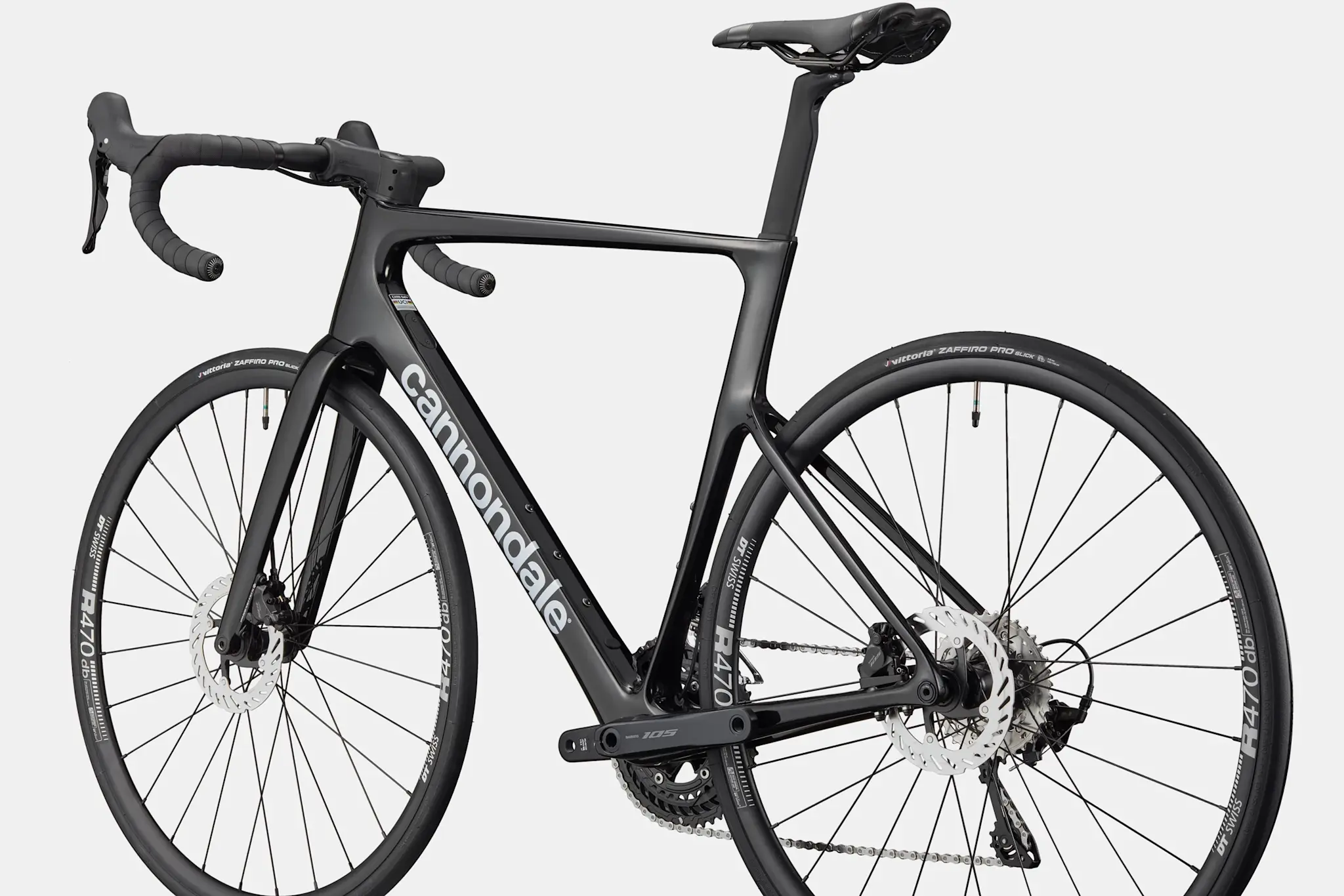

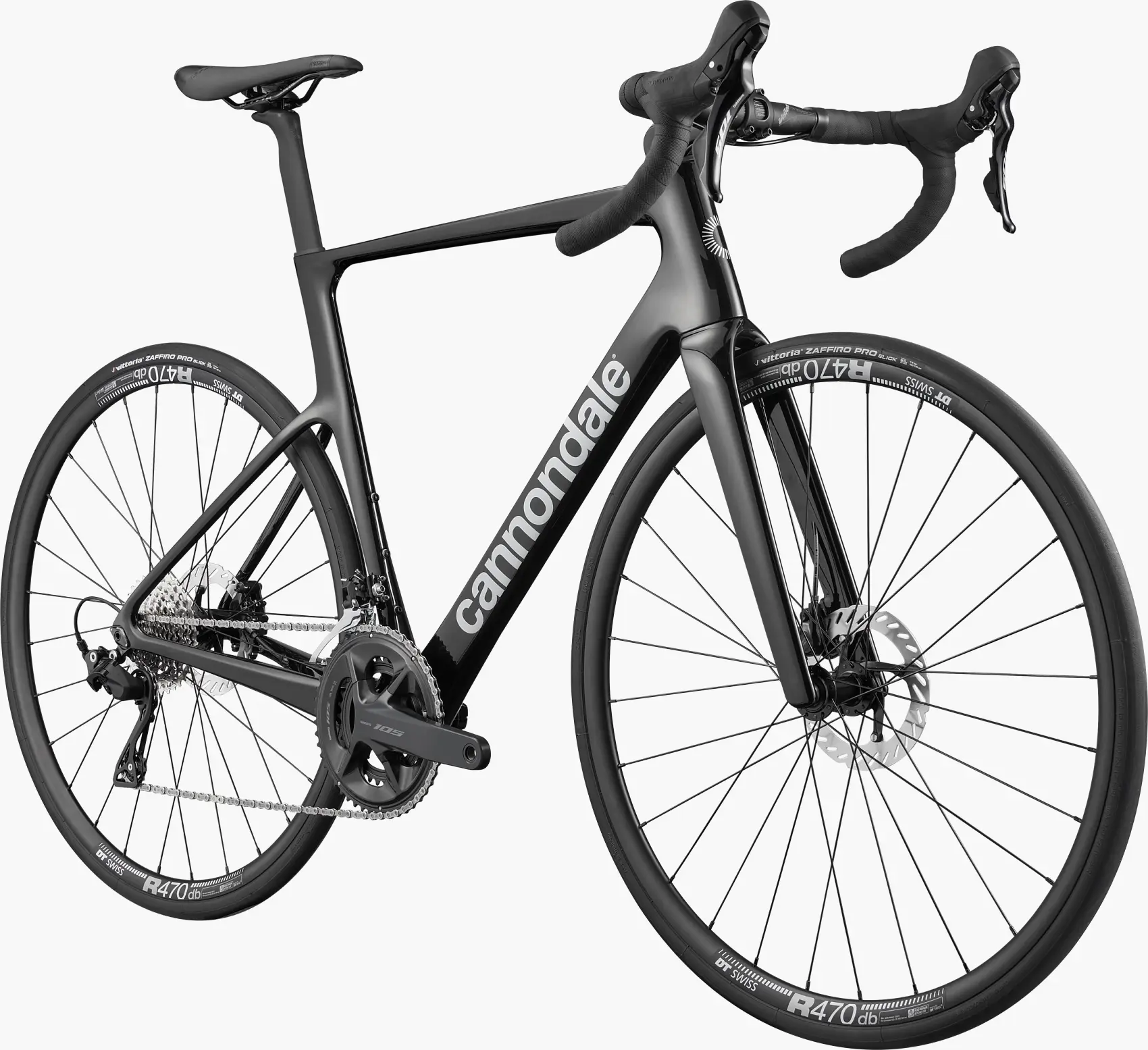

Where real race speed begins. Built on the light, aero, and race-tested Generation 4 EVO frameset, the SuperSix EVO 6 features the proven performance of Shimano's 105 mechanical 12-speed group and DT Swiss R470 tubeless-ready rims. With our Conceal stem and Vision Trimax Compact bars making up the cleanly integrated cockpit, this speedy rig is ready to make you faster everywhere.
Breakaways, KOMs, Podiums, and PRs
Details |
|
| Platform | SuperSix EVO |
| Model Name | SuperSix EVO 6 |
| Model Code | C1112GU |
Frameset |
|

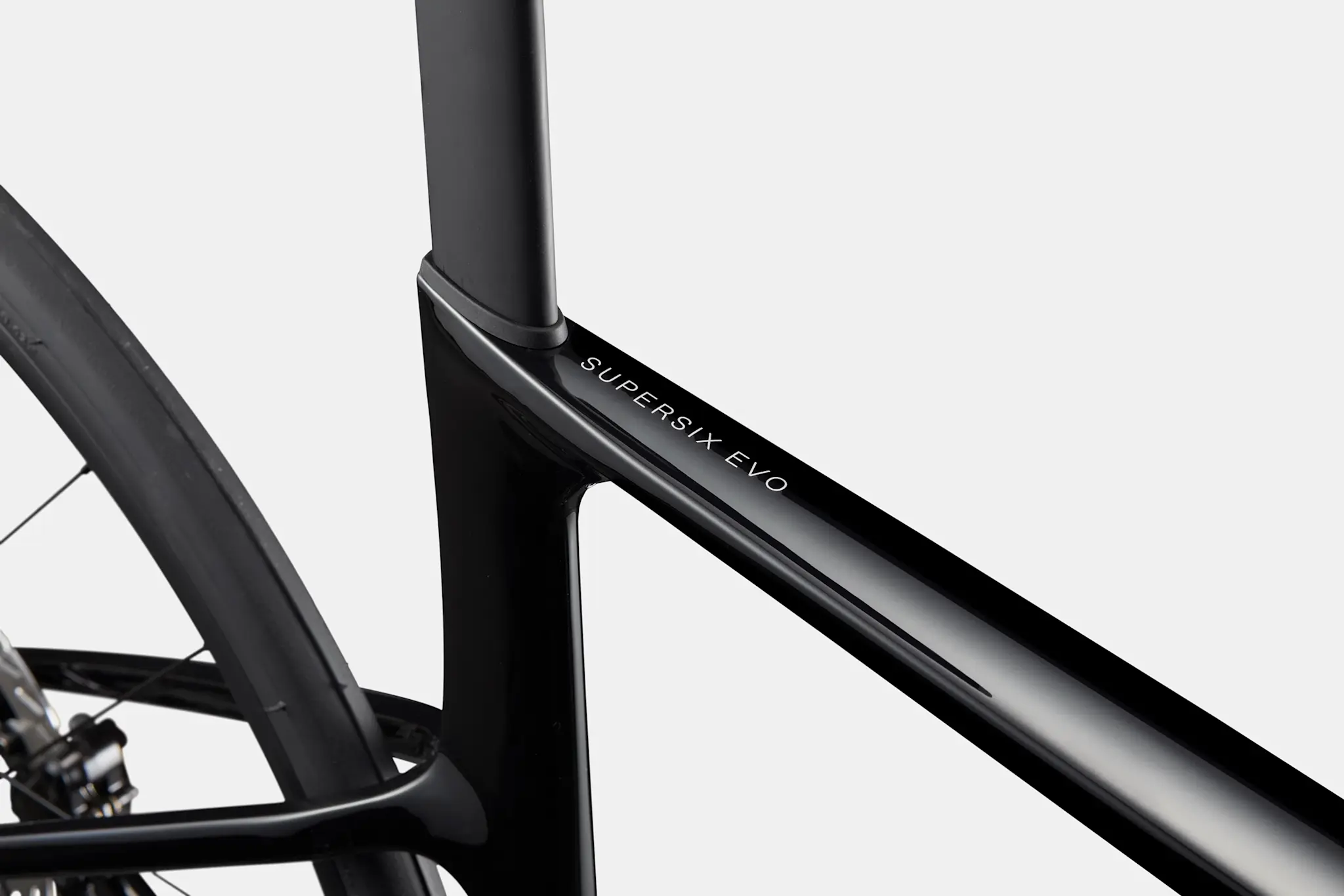

| Frame | SuperSix EVO Carbon, Gen 4, integrated cable routing w/ Switchplate, 12x142 thru-axle, BSA 68mm threaded BB, flat mount disc, integrated seat binder |
| Fork | SuperSix EVO Carbon, Gen 4, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/4" Delta steerer, 55mm offset (44-54cm), 45mm offset (56-61cm) |
| Headset |
Integrated, 1-1/8" - 1-1/4"
|
Drivetrain |
|

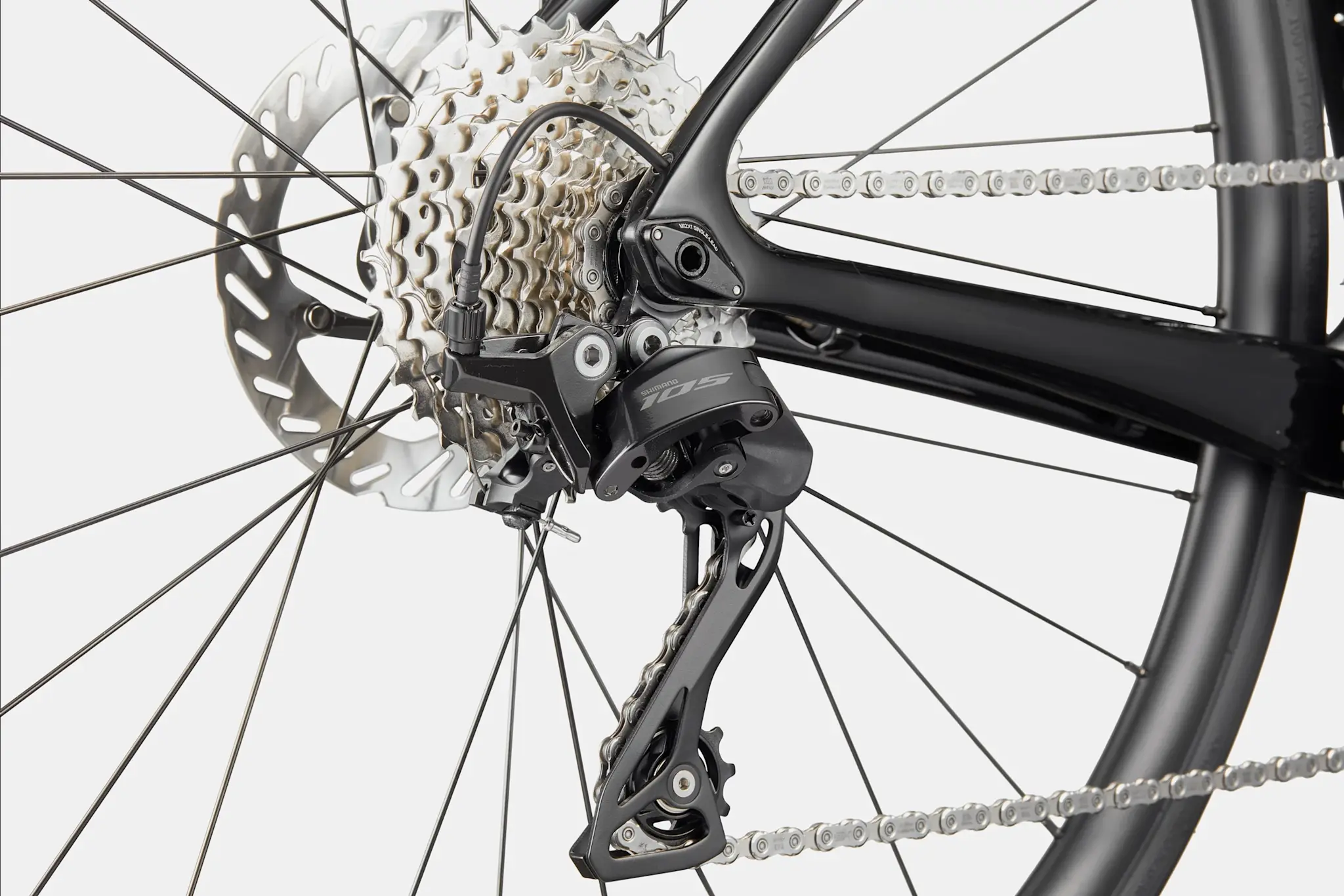

| Rear Derailleur | Shimano 105 7100, 12-speed |
| Front Derailleur | Shimano 105 7100 |
| Shifters | Shimano 105 7100, 2x12-speed |
| Chain | Shimano 105 7100, 12-speed |

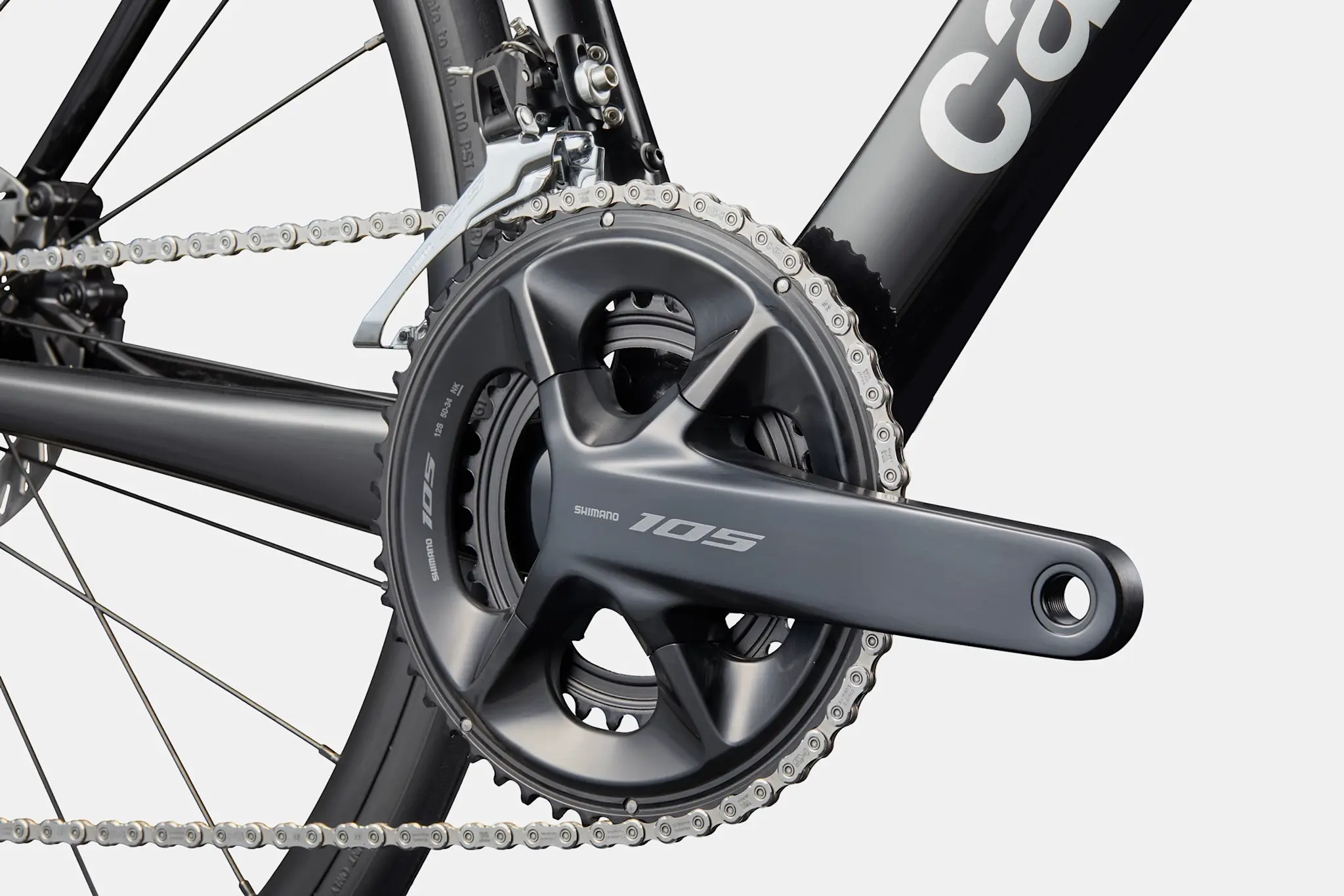

| Crank | Shimano 105 7100, 50/34: 165mm (44cm), 170mm (48-51cm), 172.5 (54-56cm), 175mm (58-61) |
| Rear Cogs | Shimano 105 R7100, 11-36, 12-speed |
| Bottom Bracket | Shimano BB-RS500, BSA 68 |
Brakes |
|
| Brakes | Shimano 105 R7170 hydraulic disc, 160/160mm CL700 rotors |
| Brake Levers |
Shimano 105 7100 hydraulic disc
|
Wheels |
|
| Rims | DT Swiss G540, 24mm inner width, 28h, tubeless ready |
| Spokes | Stainless Steel, 14g |
| Tires | Vittoria Zaffiro Pro Slick, 700x25c |
| Tire Size | 25 |
| Wheel Size | 700c |
| Hubs | Shimano TC500, centerlock, (F) 12x100mm, (R) 12x142mm |
Components |
|

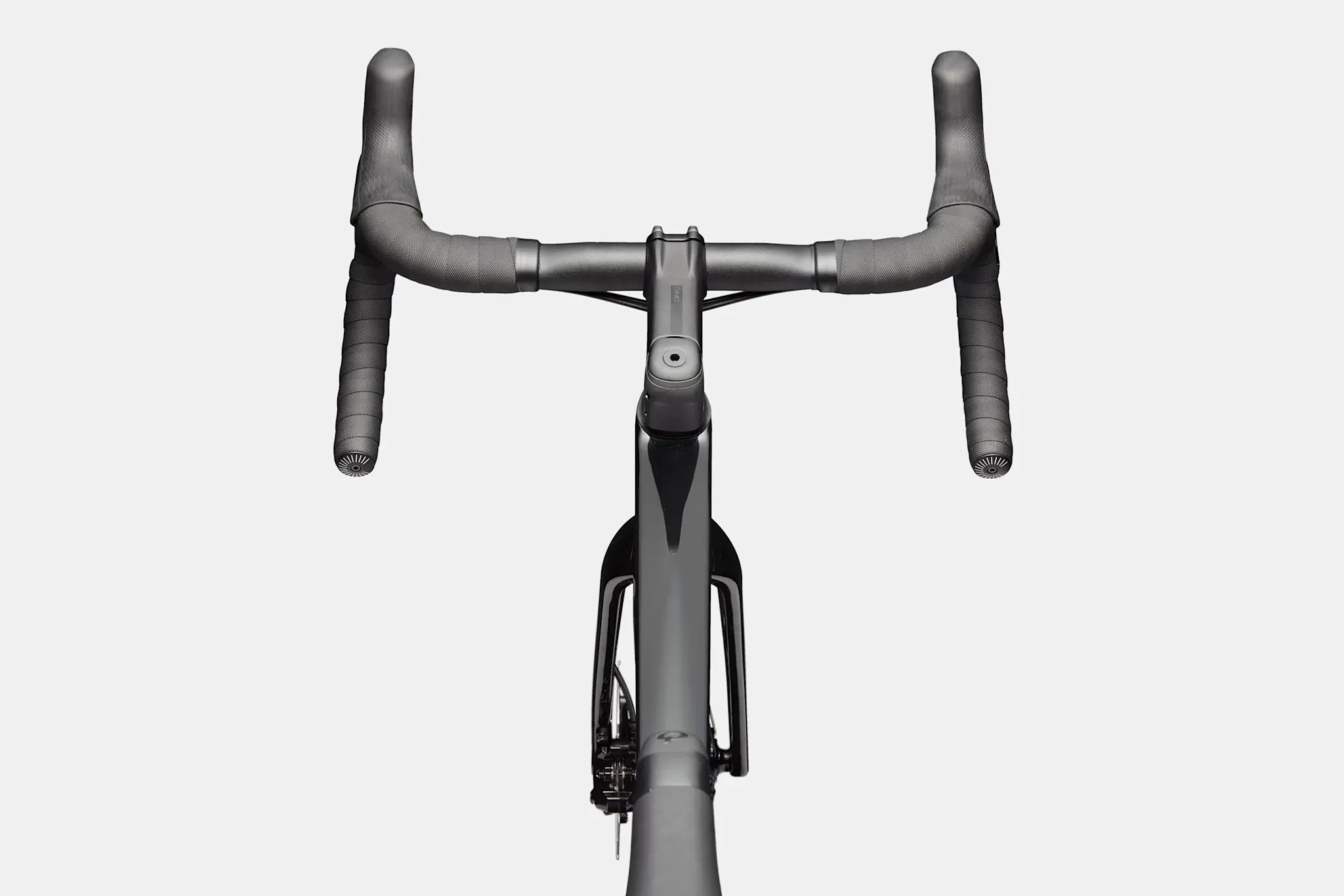

| Handlebar | Vision Trimax Compact: 380mm (44cm), 400mm (48-51), 420mm (54-56cm), 440mm (58-61) |

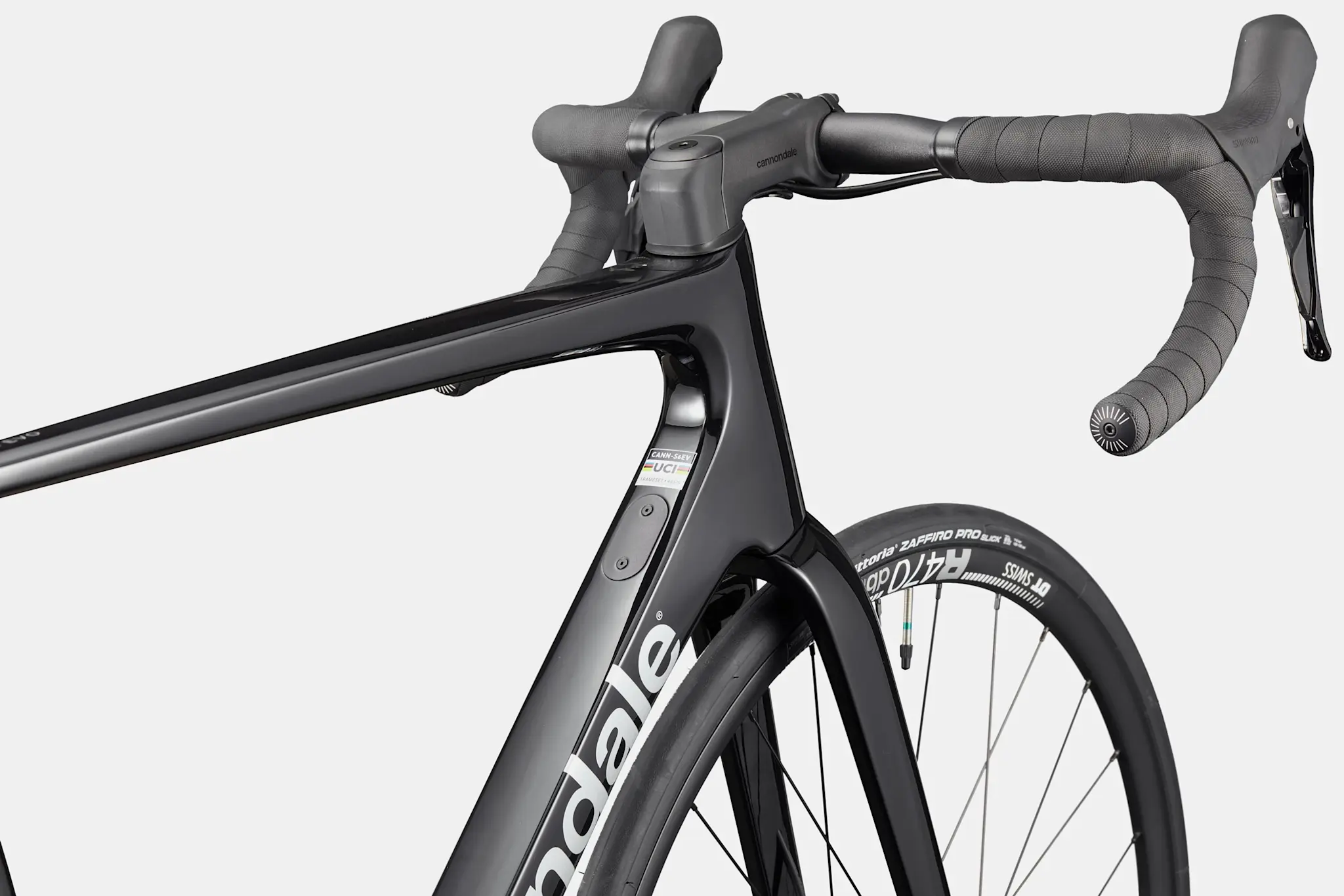

| Stem | Cannondale C1 Conceal, Alloy, 31.8, -6°: 80mm (44cm), 90mm (48-52cm), 100mm (54-56cm), 110mm (58-61cm) |
| Grips | Cannondale Bar Tape, 3.5mm |
| Saddle | Prologo Nago RS STN Vento Argo X5, S-Alloy rails, 140mm |
| Seatpost | Cannondale C1 Aero 40 Carbon, 0mm offset (44-48cm), 15mm offset (51-61cm) |
| Extra | Conceal Stem accessory mount |
