Nothing is impassable The best gravel bike for anything from dirt roads to singletrack trails. With the grip and comfort of the Kingpin suspension, nothing is off-limits.
Gravel and Dirt Roads, Rough Pavement, Trails
Gravel riding, back road exploring, bike packing and off-road adventures
Details |
|
| Platform | Topstone Carbon |

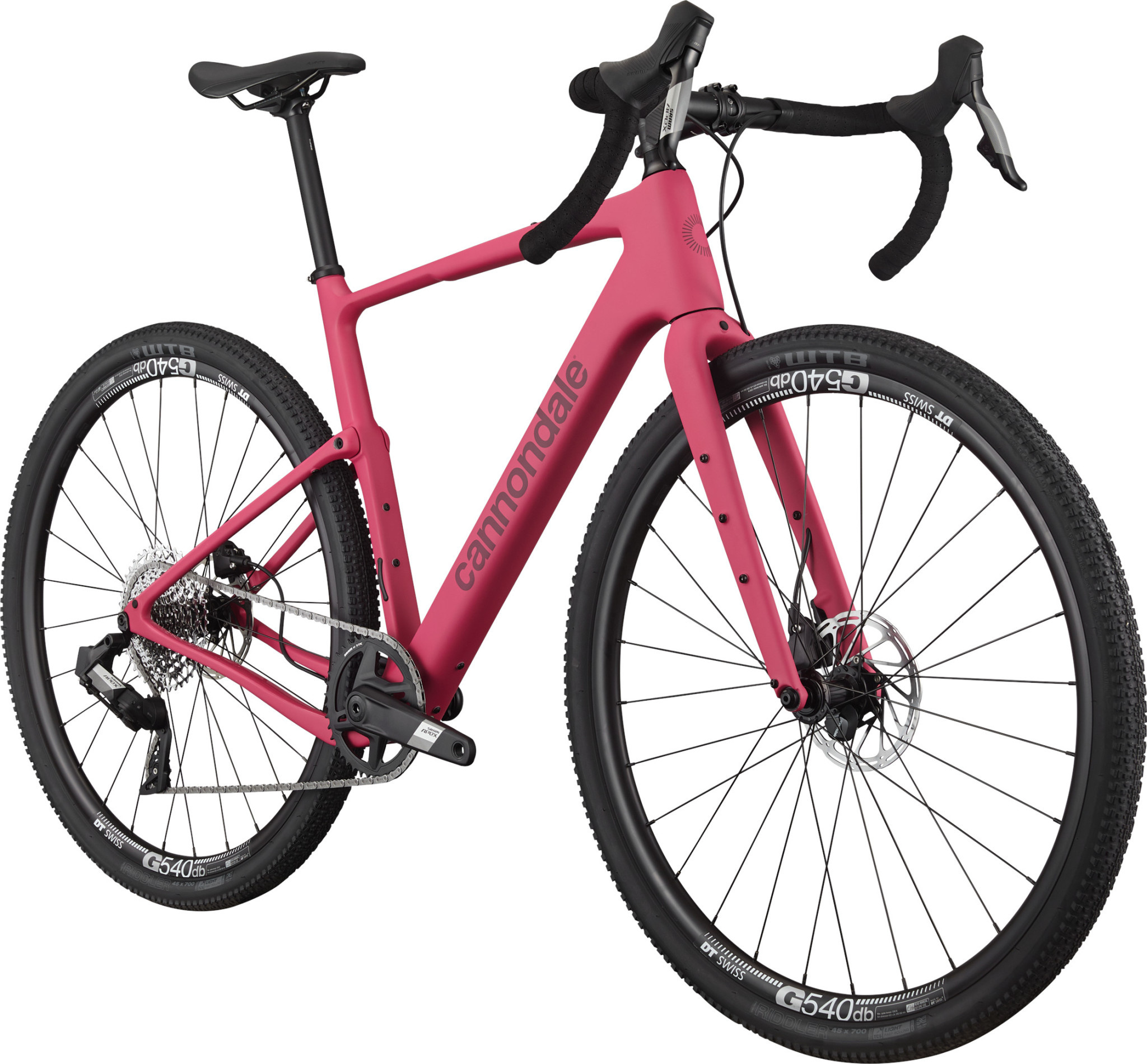

| Model Name | Topstone Carbon Apex AXS |
| Model Code | C15703U |
Frameset |
|
| Frame | Topstone Carbon, Kingpin suspension system, SmartSense compatible, Proportional Response construction, 12x142mm thru-axle, 27.2 dropper post compatible, BSA 68mm threaded BB, DirectLine internal cable routing, removable fender bridge, multiple gear/bottle mounts |
| Fork | Topstone Carbon, 1-1/8" to 1.5" steerer, 55mm OutFront offset, flat mount disc, internal routing, 12x100 thru-axle, triple bottle/gear mounts, fender mounts |
| Headset |
Integrated, 1-1/8" - 1.5"
|
Drivetrain |
|

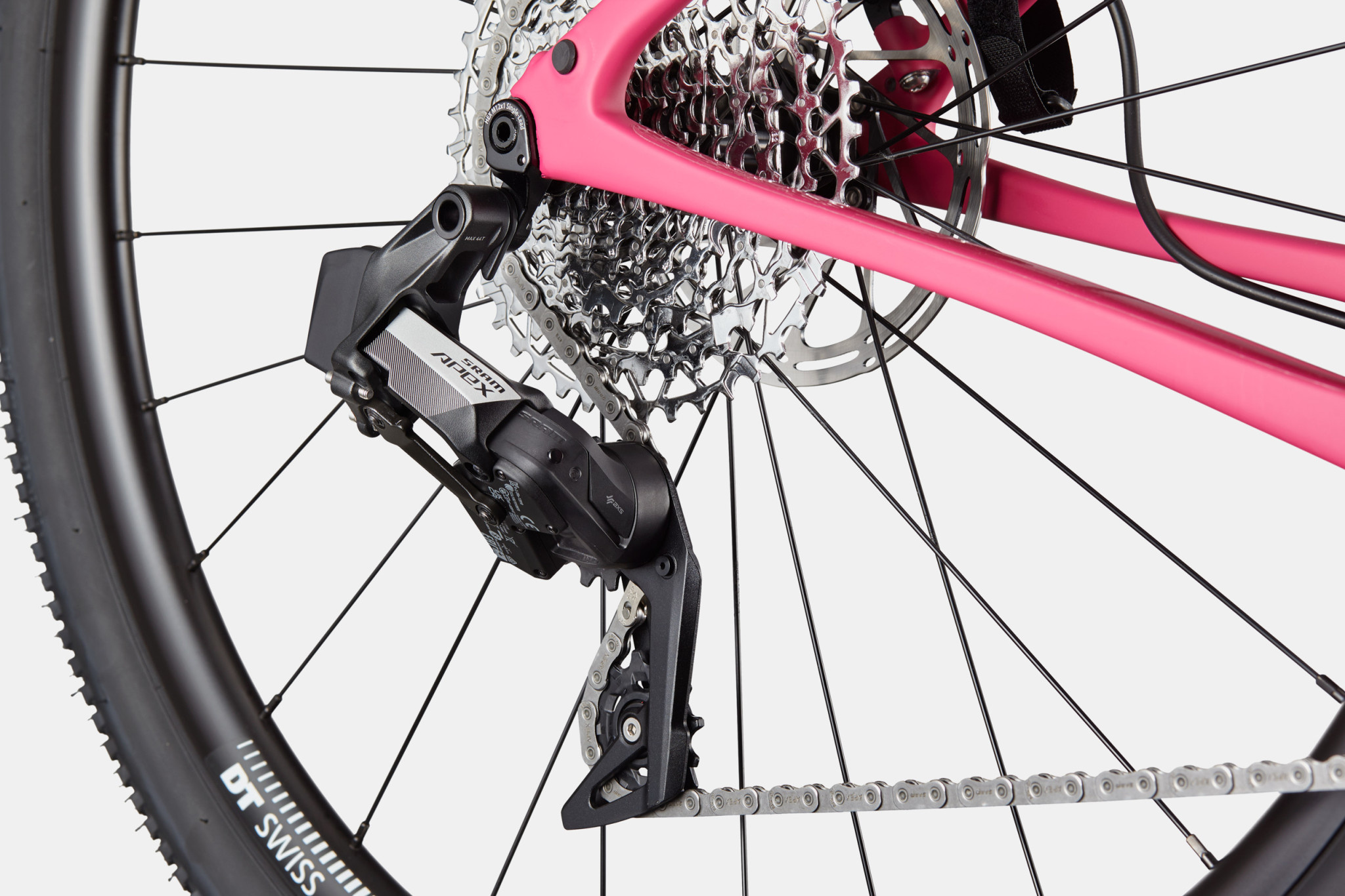

| Rear Derailleur | SRAM Apex AXS XPLR wireless |
| Shifters | SRAM Apex AXS wireless, hydraulic disc, 12-speed |
| Chain | SRAM Apex, 12-speed |
| Crank | SRAM Apex 1 Wide, 40T |
| Rear Cogs | SRAM PG-1231 XPLR, 11-44, 12-speed |
| Bottom Bracket | SRAM DUB BSA |
Brakes |
|
| Brakes | SRAM Apex hydraulic disc, 160/160mm Centerline rotors |
| Brake Levers |
SRAM Apex AXS hydraulic disc
|
Wheels |
|
| Rims | DT Swiss G540, 28h, 24mm inner width |
| Spokes | Stainless Steel, 14g |
| Tires | WTB Riddler TCS Light, 700x45c, tubeless ready |
| Tire Size | 45 |
| Wheel Size | 700c |
| Hubs | (F) Formula cartridge bearing, 12x100mm, centerlock / (R) Formula cartridge bearing, 12x142mm, centerlock |
Components |
|
| Handlebar | Cannondale 3, butted 6061 Alloy, 16 deg flare drop |
| Stem | Cannondale 3, 6061 Alloy, 31.8, 7° |
| Grips | Fizik Solocush Soft, 3mm |
| Saddle | Fizik New Aliante R5, S-alloy rails |
| Seatpost | Cannondale 3, 6061 Alloy, 27.2 x 350mm |
Connectivity |
|
| Wheel Sensor | Cannondale Wheel Sensor |
Extra |
|
| Extra 1 | StrapRack Tool Carrier, SRAM AXS charger |
