Go long, go short, go fast. This is WorldTour performance for real world rides.

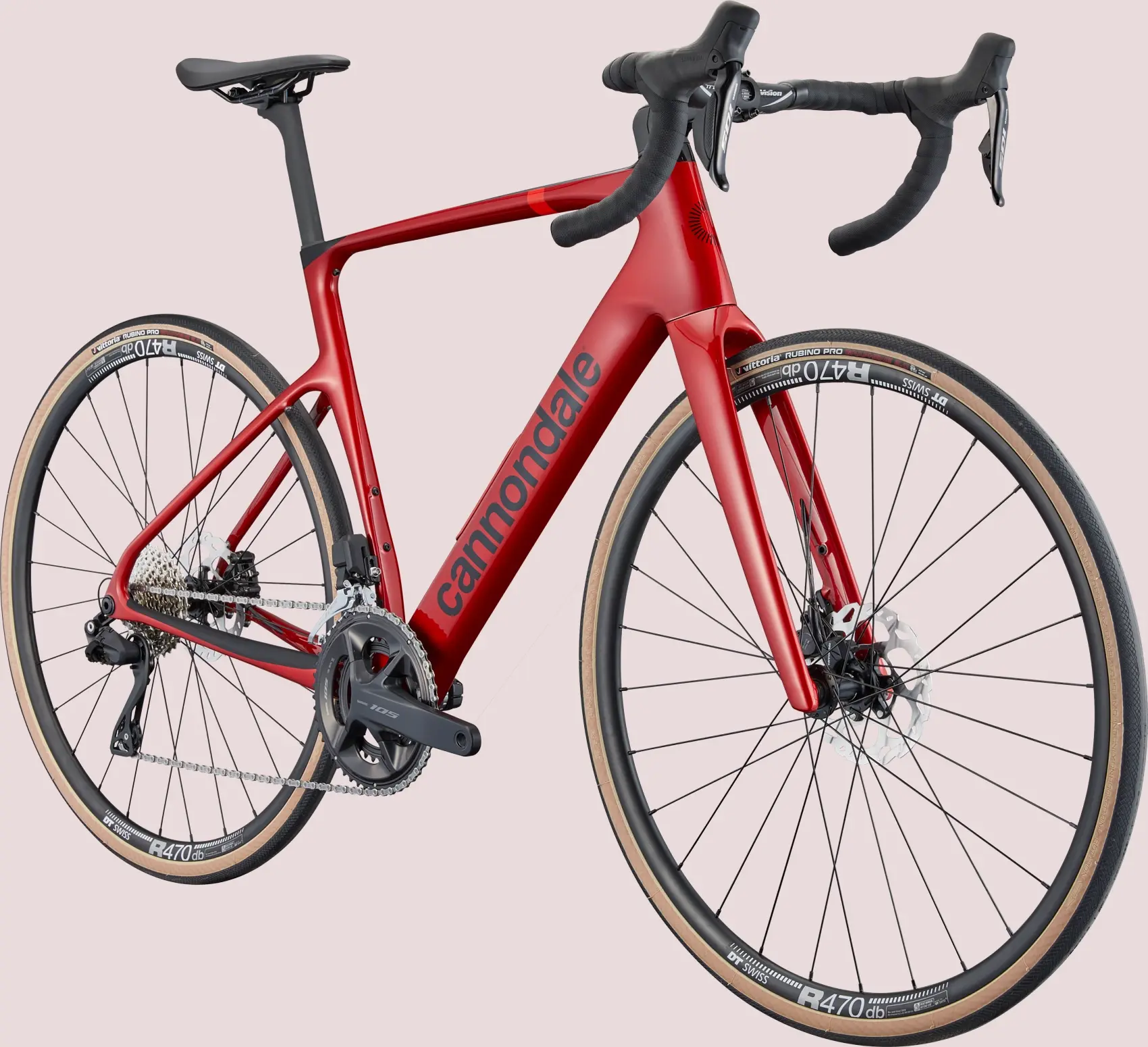

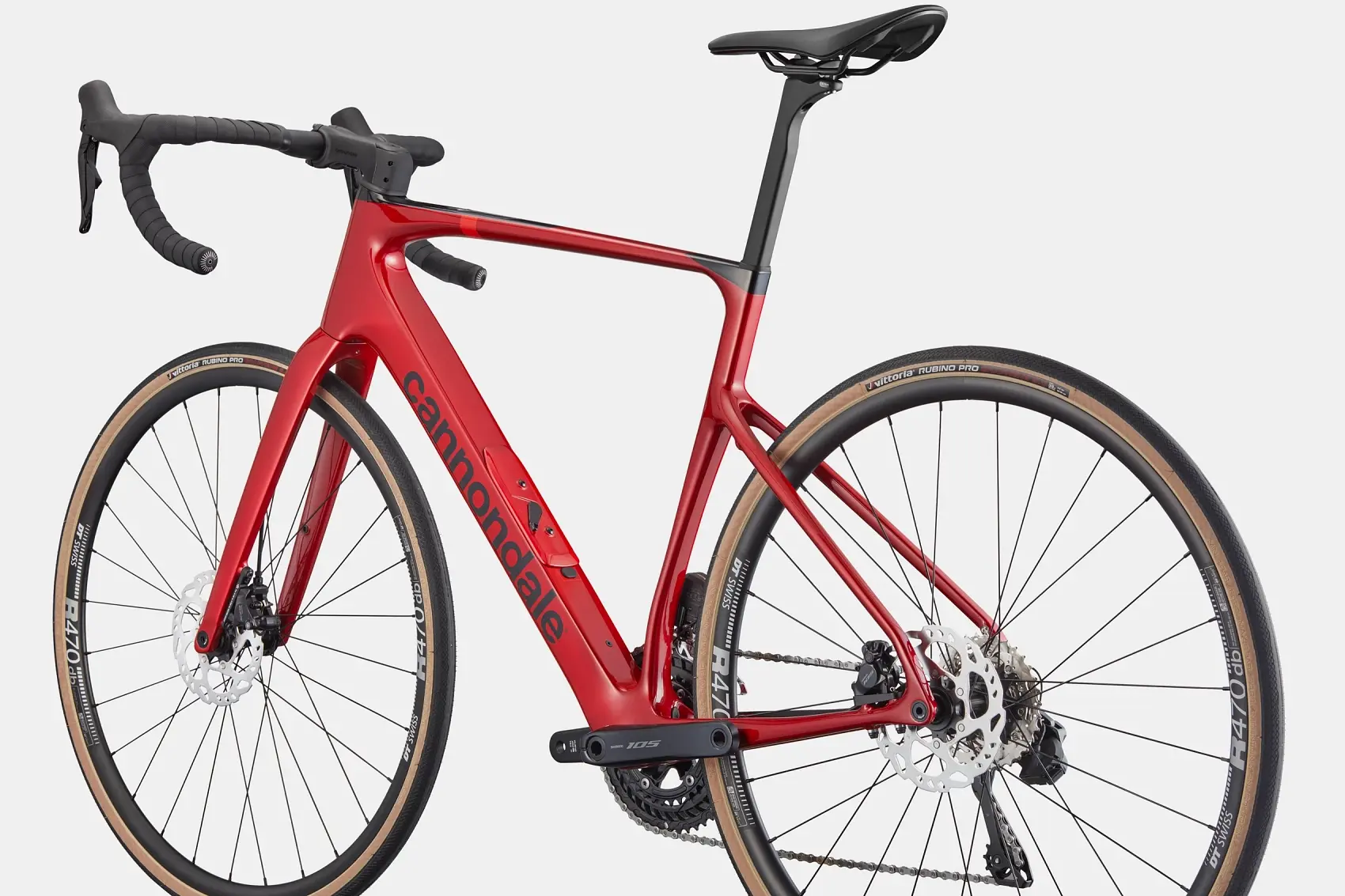

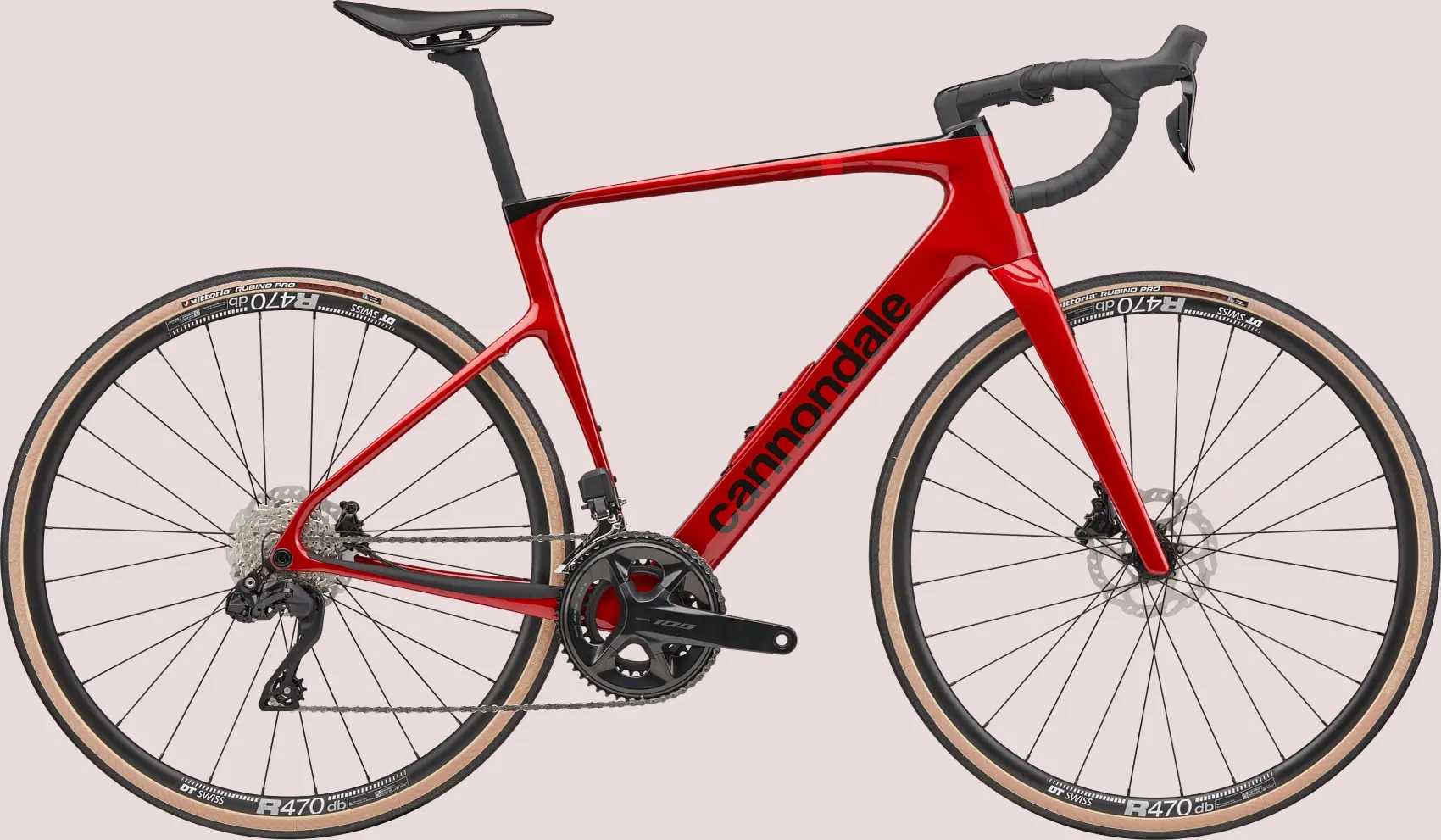

Wireless brains meet all-road brawn. Synapse Carbon 4 runs Shimano 105 Di2 for a shifting experience that feels straight off the pro tour, minus the bank loan. The frame delivers that signature Synapse ride—quietly fast, endlessly composed—and plays nice with wide tires, fenders, and long days. Call it the sweet spot between Sunday speed and weekday practicality.
Comfortable high-performance road riding, long distance missions, fast group rides
Details |
|
| Platform | Synapse |
| Model Name | Synapse Carbon 4 |
| Model Code | C12075U |
Frameset |
|

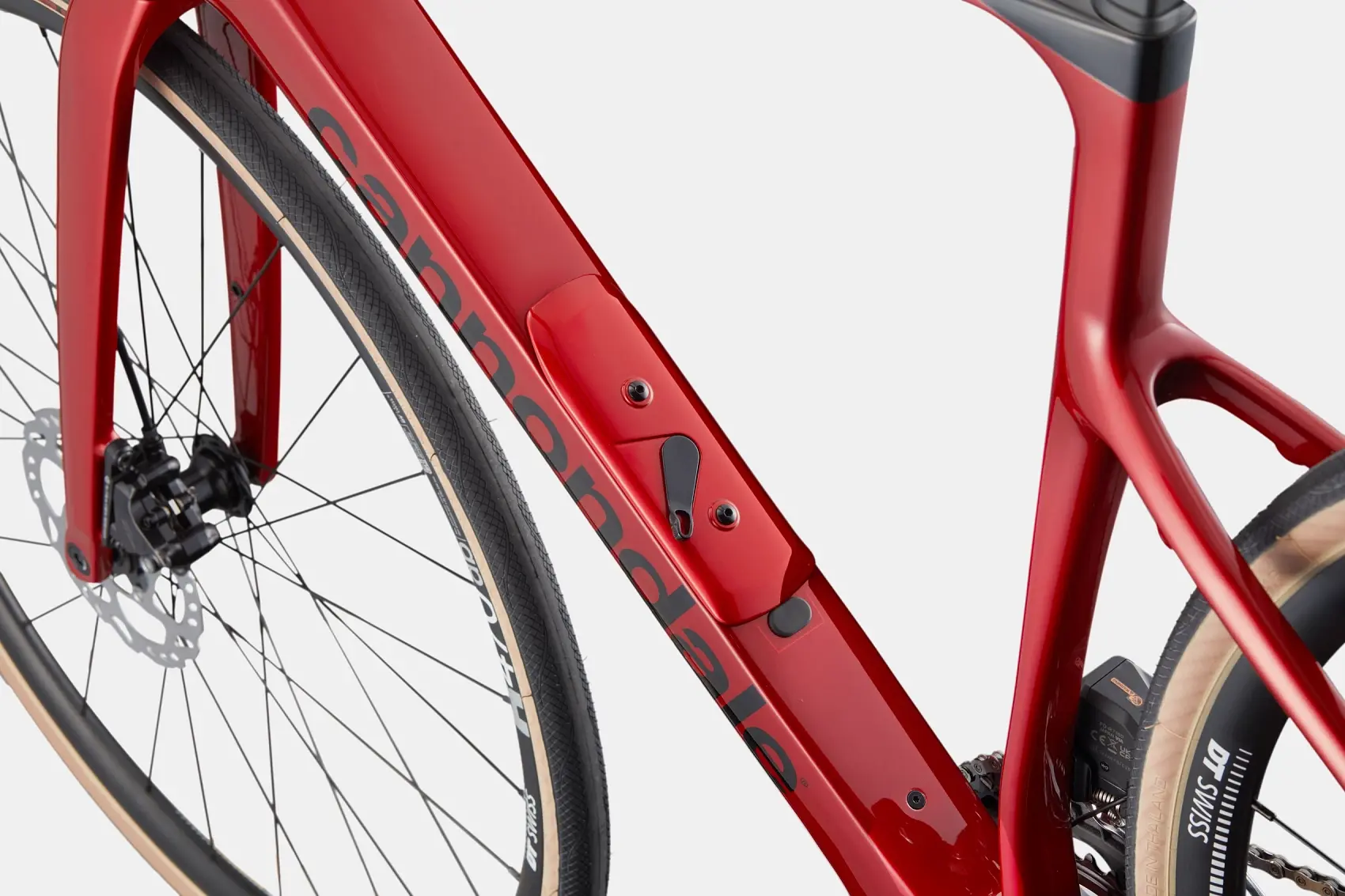

| Frame | Synapse Carbon, Proportional Response construction, integrated cable routing, downtube Stashport, 12x142 thru-axle, UDH, BSA 68mm threaded BB, flat mount disc, integrated seat binder, SmartSense Gen 2.0 compatible, fender mounts |
| Fork | Synapse Carbon, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/5" Delta steerer, 55mm offset, fender mounts |
| Headset |
Integrated, 1-1/8" - 1-1/2"
|
Drivetrain |
|
| Front Derailleur | Shimano 105 Di2 7150, braze-on |

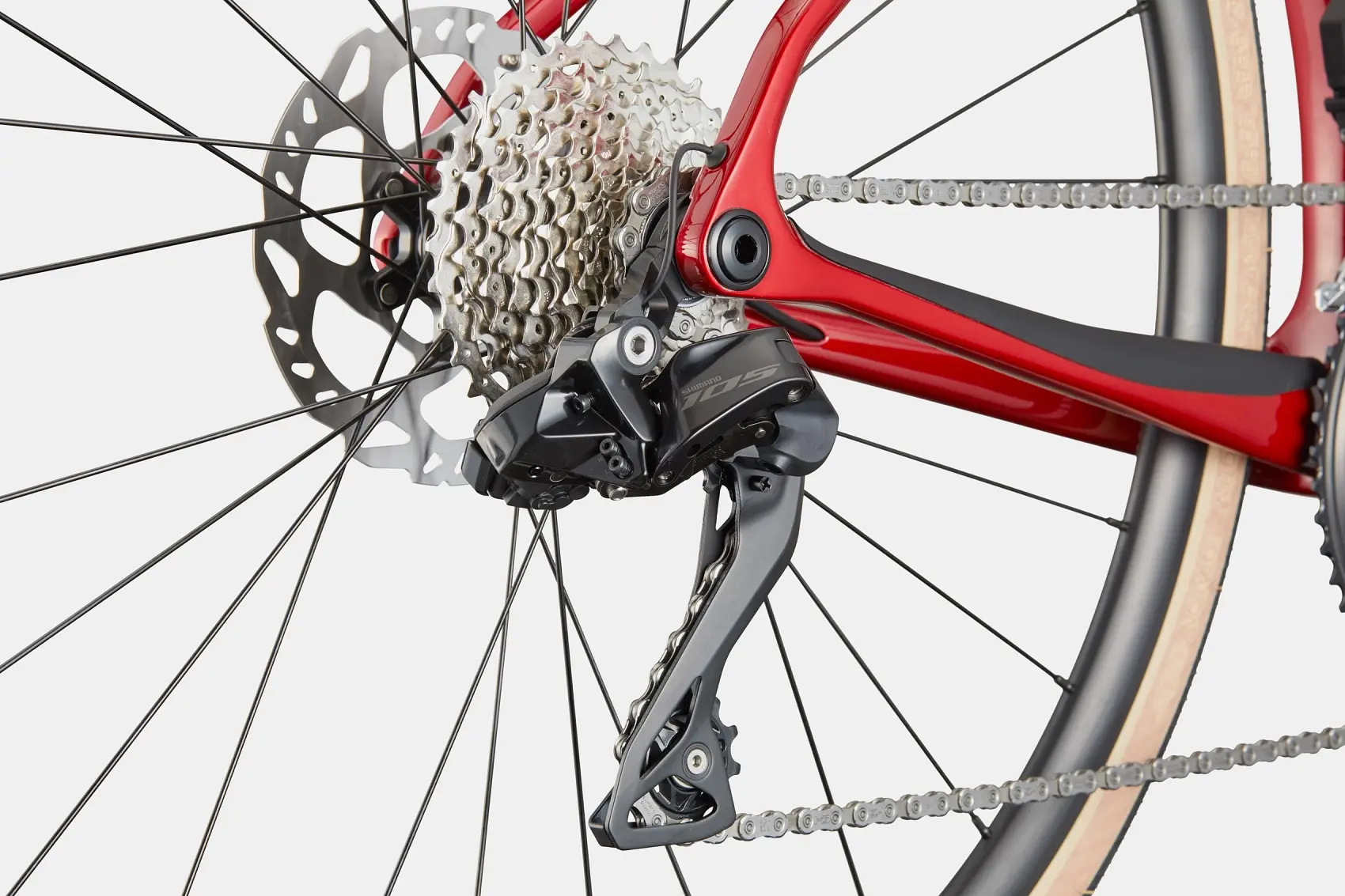

| Rear Derailleur | Shimano 105 Di2 7150 |
| Shifters | Shimano 105 Di2 R7170, wireless, 12-speed |
| Chain | Shimano 105 7100, 12-speed |

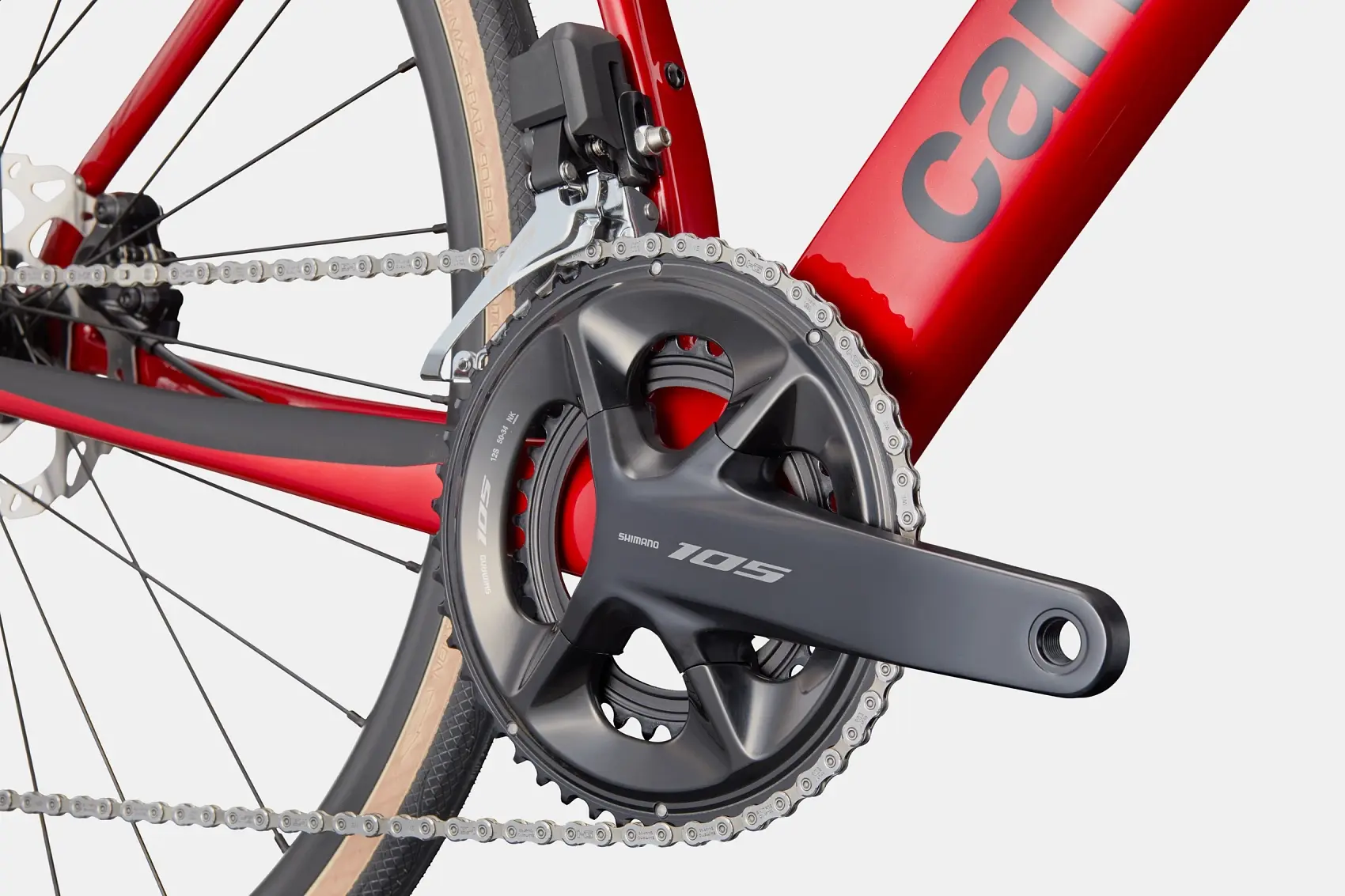

| Crank | Shimano 105 7100, BSA, 50/34 |
| Rear Cogs | Shimano 105 7100, 11-34, 12-speed |
| Bottom Bracket | Shimano BSA 68 |
Brakes |
|
| Brakes | Shimano 105 7170 hydraulic disc, 160/160mm RT70 rotors |
| Brake Levers | Shimano 105 Di2 7170 hydraulic disc |
Wheels |
|
| Rims | DT Swiss R470 DB, 28h |
| Spokes | Stainless Steel, 14g |
| Tires | Vittoria Rubino Pro IV, 700x32c |
| Tire Size | 32 |
| Wheel Size | 700c |
| Hubs | (F) Shimano RS470, 12x100mm centerlock / (R) Shimano RS470, 12x142mm centerlock |
Components |
|

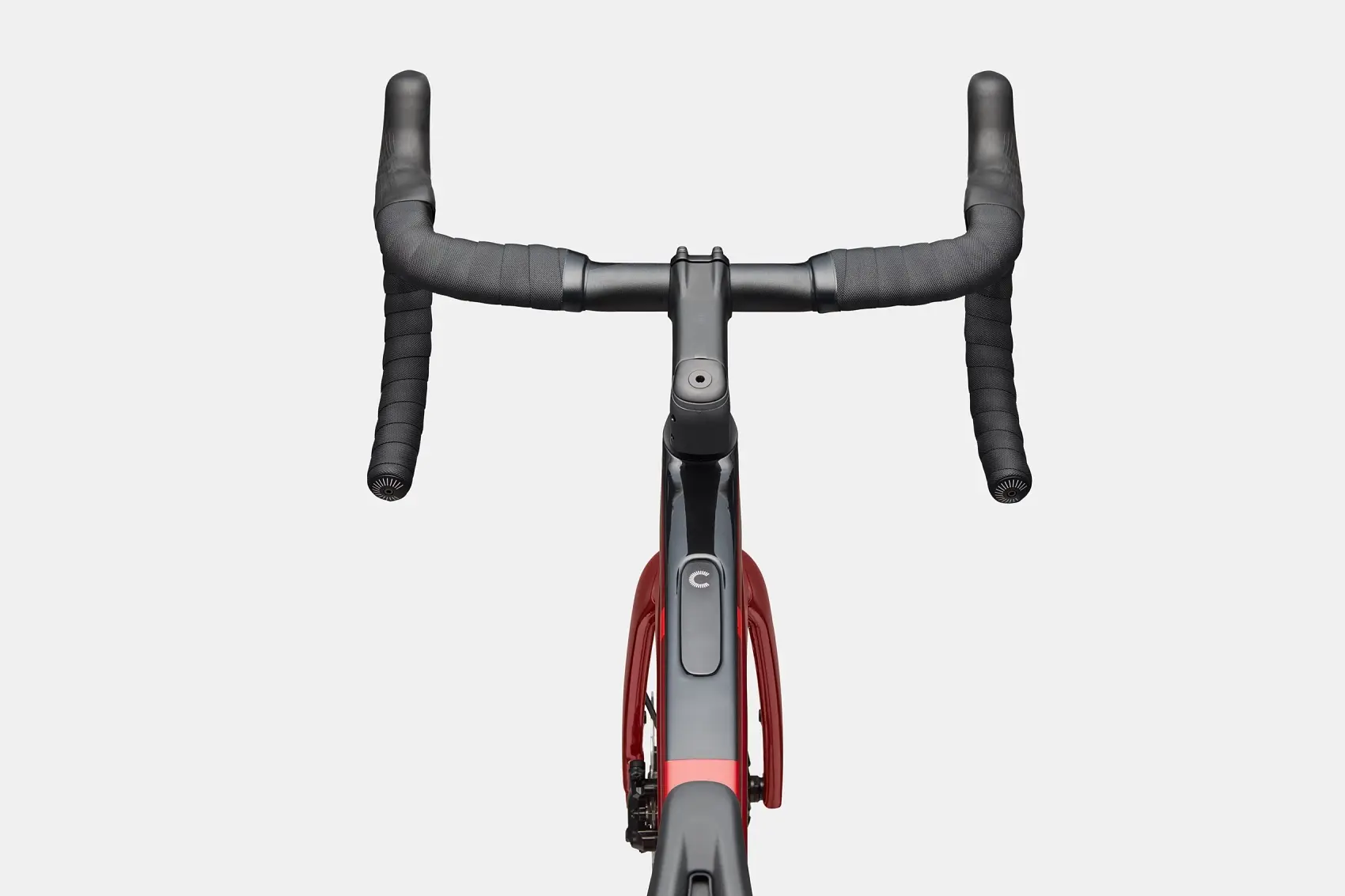

| Handlebar | Vision Trimax Aero Alloy |
| Stem | Cannondale C1 Conceal, Alloy, 31.8, -6° |
| Grips | Cannondale Bar Tape, 3.5mm |
| Saddle | Fizik Vento Argo X5, 140mm |
| Seatpost |
Cannondale C1 Aero 27 Carbon, SmartSense compatible, 330mm length, 0mm offset (44-48cm), 15mm offset (51-61cm) |
| Wheel Sensor |
Cannondale Wheel Sensor |
| Extra 1 |
Large StashBag downtube storage bag |
