A pure gravel race machine focused on one thing: taking the lead and staying there. Ok, two things…
Train, race, repeat. SuperX 4 AXS offers serious gravel racing chops at a more approachable price. It shares the same carbon frame as the more expensive models, and features a suite of high value, high performance components guaranteed to raise your game without killing your wallet. SRAM's proven Apex AXS XLPR 12-speed gravel group cracks off precise wireless shifts. Apex brakes deliver precise power and control. DT Swiss G540 gravel rims balance light weight with rugged durability. Everything you need to excel at high-speed gravel exploits.
Elite gravel racing, KOM hunting, Going like hell
Details |
|
| Platform | SuperX |
| Model Name | SuperX 4 AXS |
| Model Code | C1706GU |
Frameset |
|

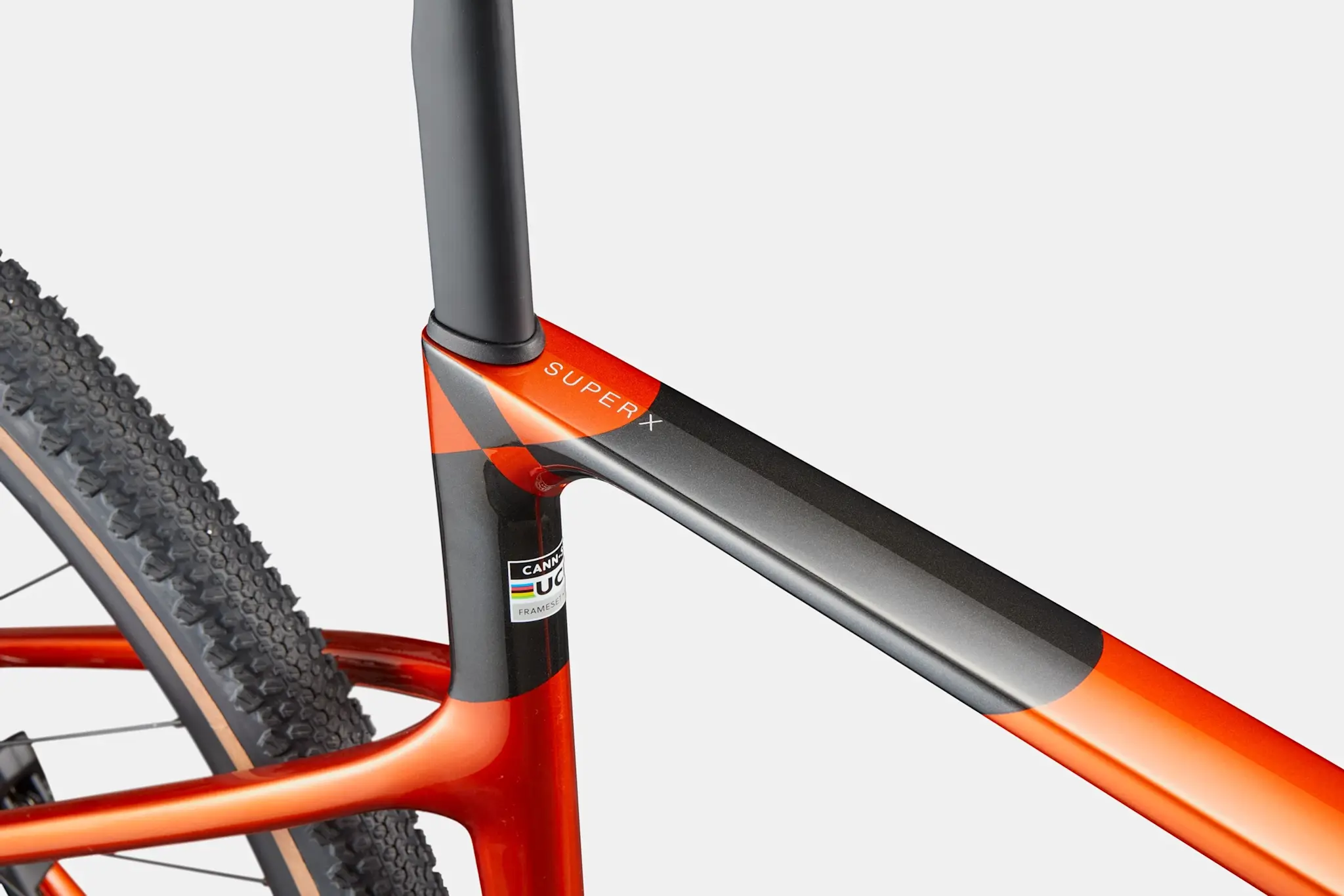

| Frame | SuperX Carbon, Proportional Response construction, internal cable routing, 12x142mm thru-axle, UDH, BSA 68mm threaded BB, flat mount disc, integrated seatpost binder |
| Fork | SuperX Carbon, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/2" Delta steerer, 55mm offset |
| Headset |
Integrated, 1-1/8" - 1.5"
|
Drivetrain |
|

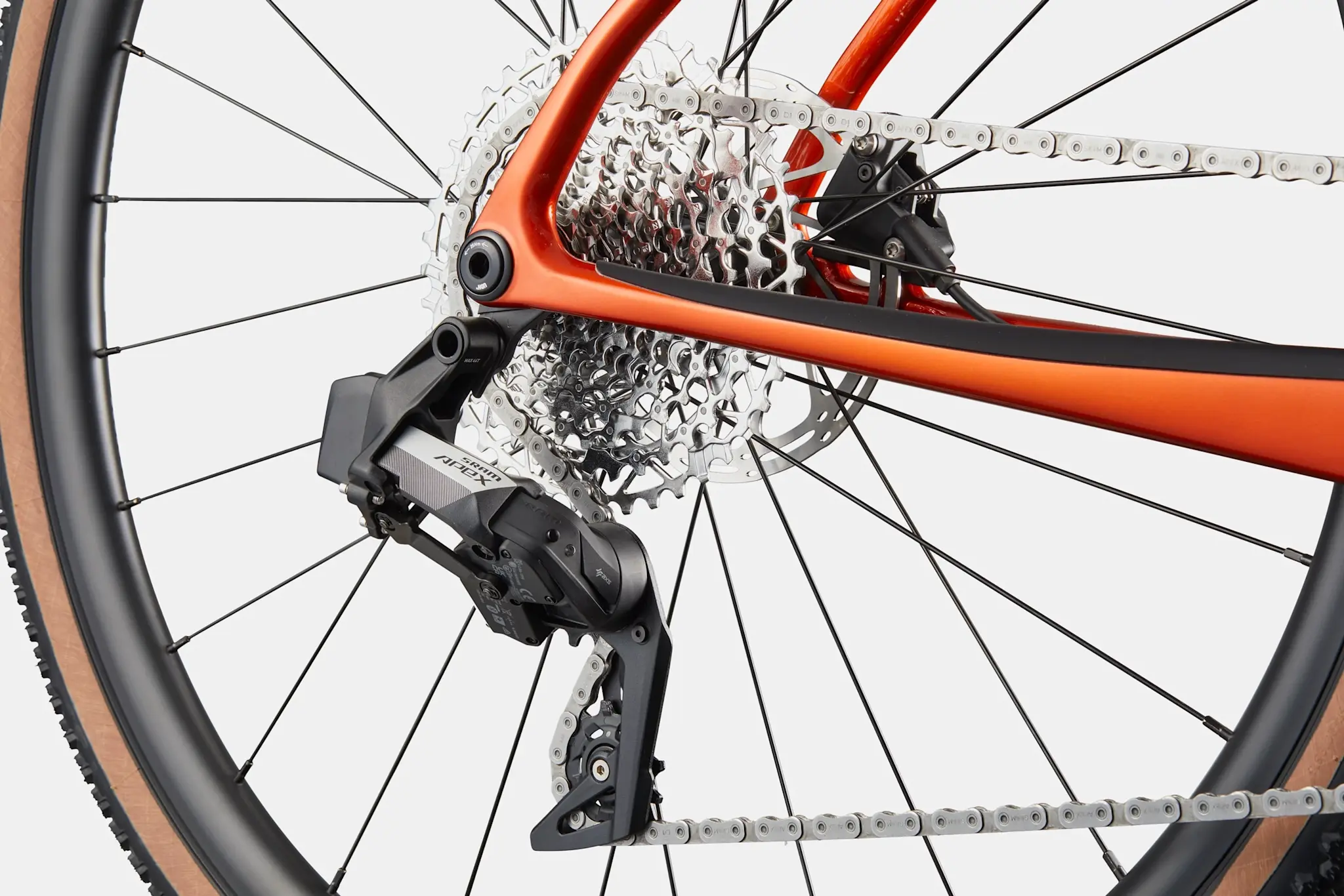

| Rear Derailleur | SRAM Apex AXS XPLR, 12-speed |

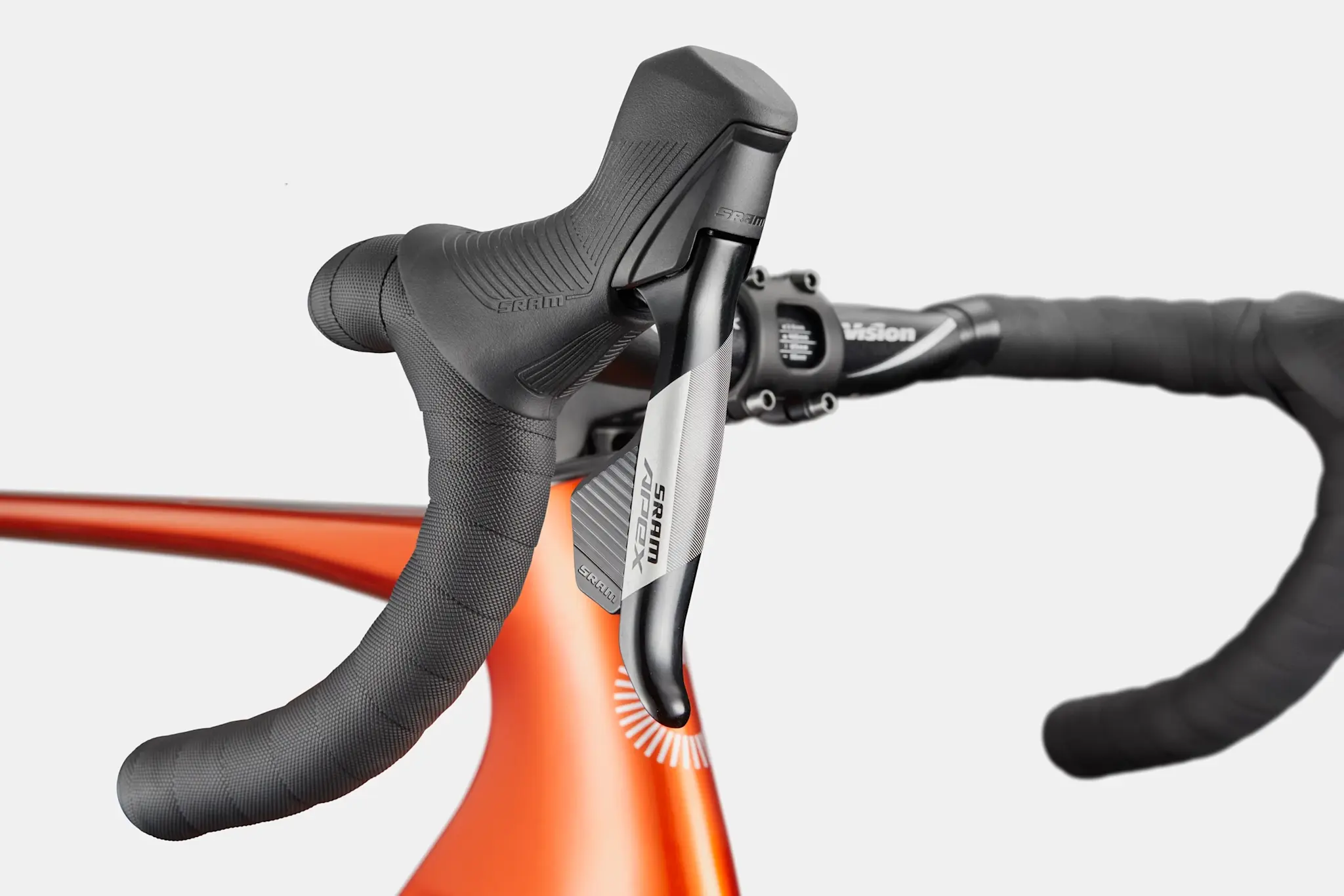

| Shifters | SRAM Apex AXS, 12-speed |
| Chain | SRAM Apex, 12-speed |

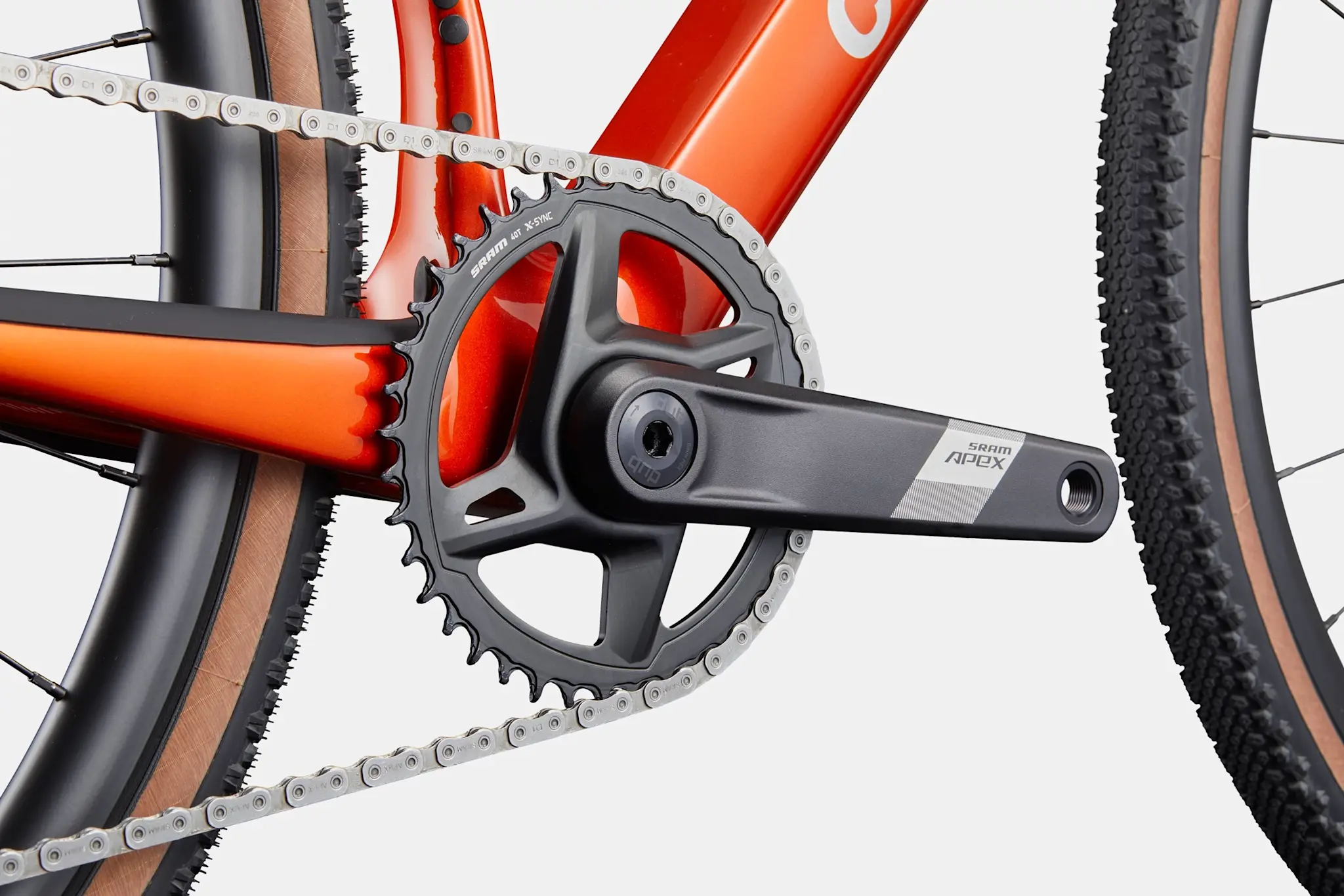

| Crank | SRAM Apex 1 Wide, 40T: 165mm (46cm), 170mm (51cm), 172.5 (54-56cm), 175mm (58-61cm) |
| Rear Cogs | SRAM Apex XPLR PG-1231, 11-44, 12-speed |
| Bottom Bracket | SRAM DUB BSA Road 68 Wide |
Brakes |
|
| Brakes | SRAM Apex hydraulic disc, Centerline 160/160mm centerlock rotors |
| Brake Levers |
SRAM Apex AXS hydraulic disc
|
Wheels |
|
| Rims | DT Swiss G540, 24mm inner width, 28h, tubeless ready |
| Spokes | DT Swiss Champion |
| Tires | Vittoria Terreno T50, 700x40c, tubeless ready |
| Tire Size | 40 |
| Wheel Size | 700c |
| Hubs | (F) DT Swiss 370, 12x100mm centerlock / (R) DT Swiss 370 LN Ratchet System, 12x142mm centerlock |
Components |
|

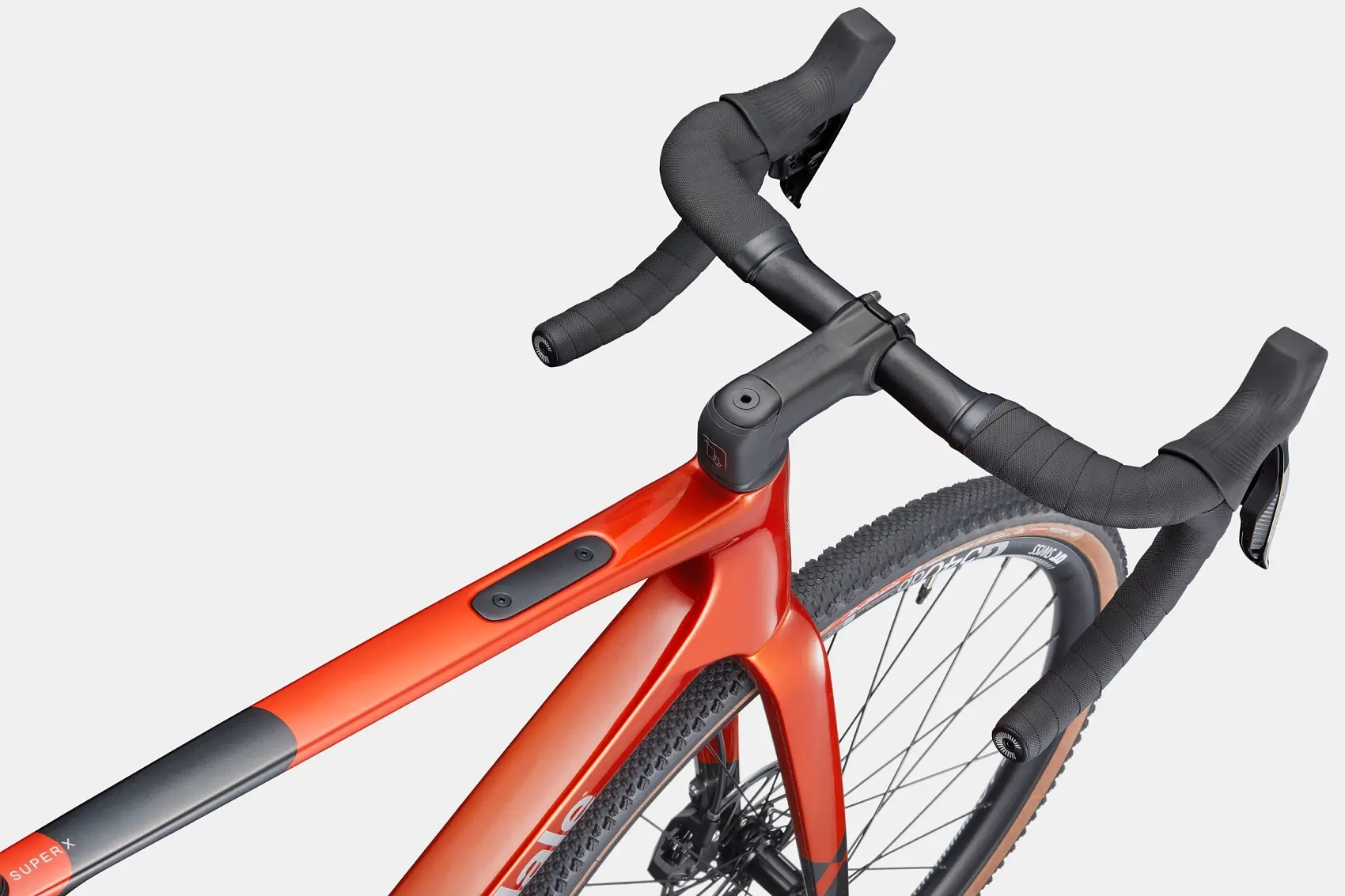

| Handlebar | Vision Trimax Aero Alloy: 400mm (46-51cm), 420mm (54-61cm) |
| Stem | Cannondale C1 Conceal, Alloy, 31.8, -6°: 90mm (46-51m), 100mm (54-56cm), 110mm (58-61cm) |
| Grips | Cannondale Bar Tape, 3.5mm |
| Saddle | Fizik Vento Argo X5, S-Alloy rails, 140mm |
| Seatpost | Cannondale C1 Aero 27 Carbon, SmartSense compatible, 0mm offset (46cm), 15mm offset (51-61cm) |
