The Moterra packs massive power, range, and silky suspension, handling rugged terrain like a luxury off-roader. Built to go further—faster.
Moterra 4+ is built for big days. A SmartForm C1 Alloy frame with a RockShox Deluxe Select shock and rugged Suntour Zeron 36X fork deliver a ride that is balanced, planted and predictable. Bosch’s most powerful CX motor and largest 800Wh battery deliver smooth, sustained power with massive range. A Shimano CUES U6000 drivetrain and Tektro Gemini SL 4-piston brakes handle the stops and shifts, making this an always-game partner for off-road exploration and all-day excursions.
Endless spins, uphill wins, and permanent grins on all kinds of trails, from the mild to the wild
Details |
|
| Platform | Moterra Neo |
| Model Name | Moterra 4+ |
| Model Code |
C6551GU
|
Frameset |
|
| Frame | Moterra, SmartForm C1 Alloy, 29" wheels, 150mm travel, Cannondale Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH, 200mm native post mount brake, 1.5” – 1.8” tapered headtube, 40mm two-bolt kickstand compatible, integrated Moterra rear rack and fender mounts |
| Fork | SR Suntour Zeron 36-X Boost, 160mmm, EQ Air, compression & rebound adjust, 15x110mm thru-axle, tapered steerer, 44mm offset |
| Headset |
Acros ICR, 1.5" to 1.8", sealed bearings
|
| Rear Shock |
RockShox Deluxe Select, DebonAir+, adjustable rebound, 230x62.5mm
|
|
|
|
E- System |
|
| Drive Unit |

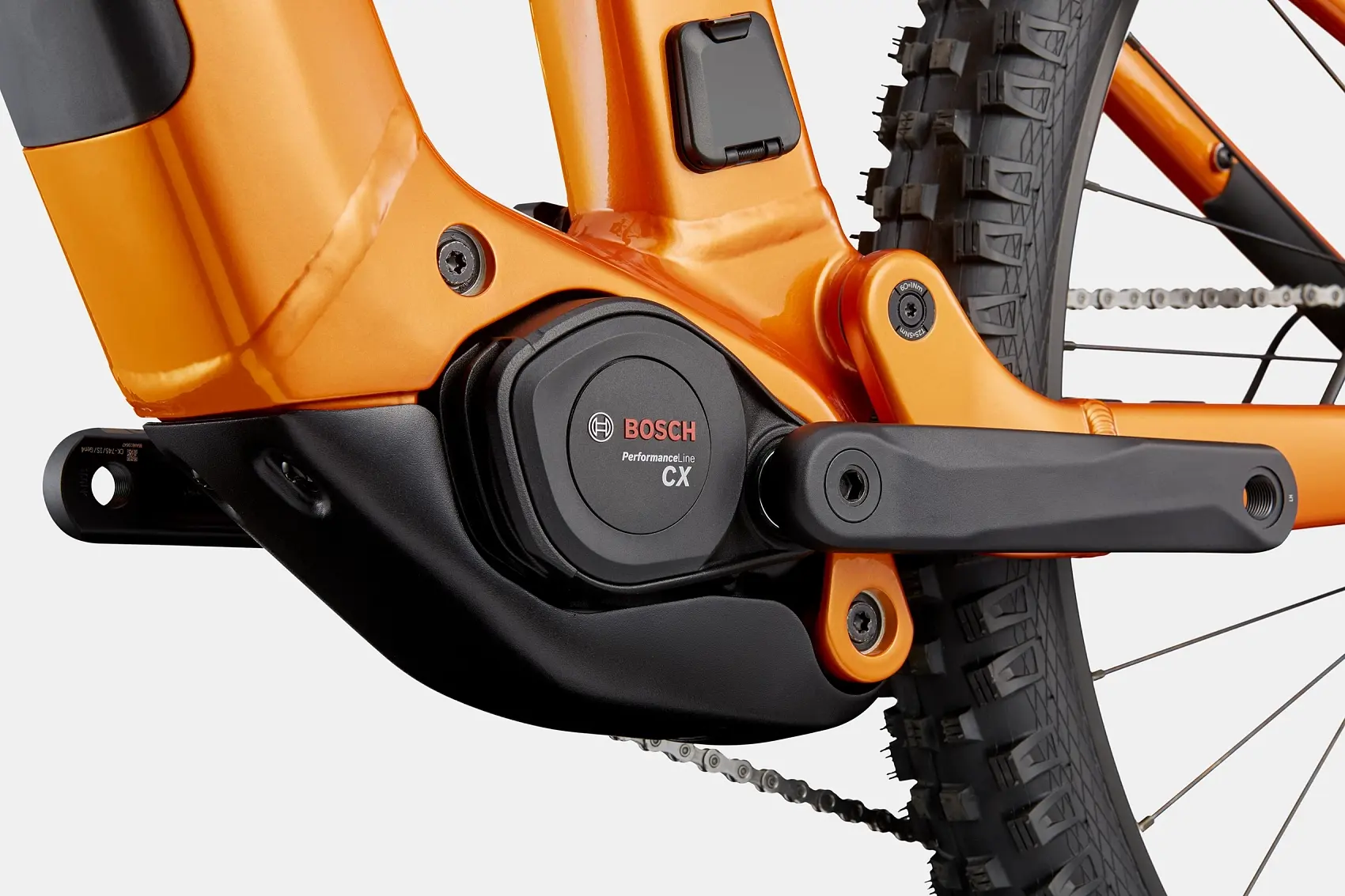

Bosch Performance Line CX
|
| Battery |
Bosch PowerTube, 800Wh
|
| Charger | Bosch 4A |
| Display | Bosch LED Remote |
Drivetrain |
|

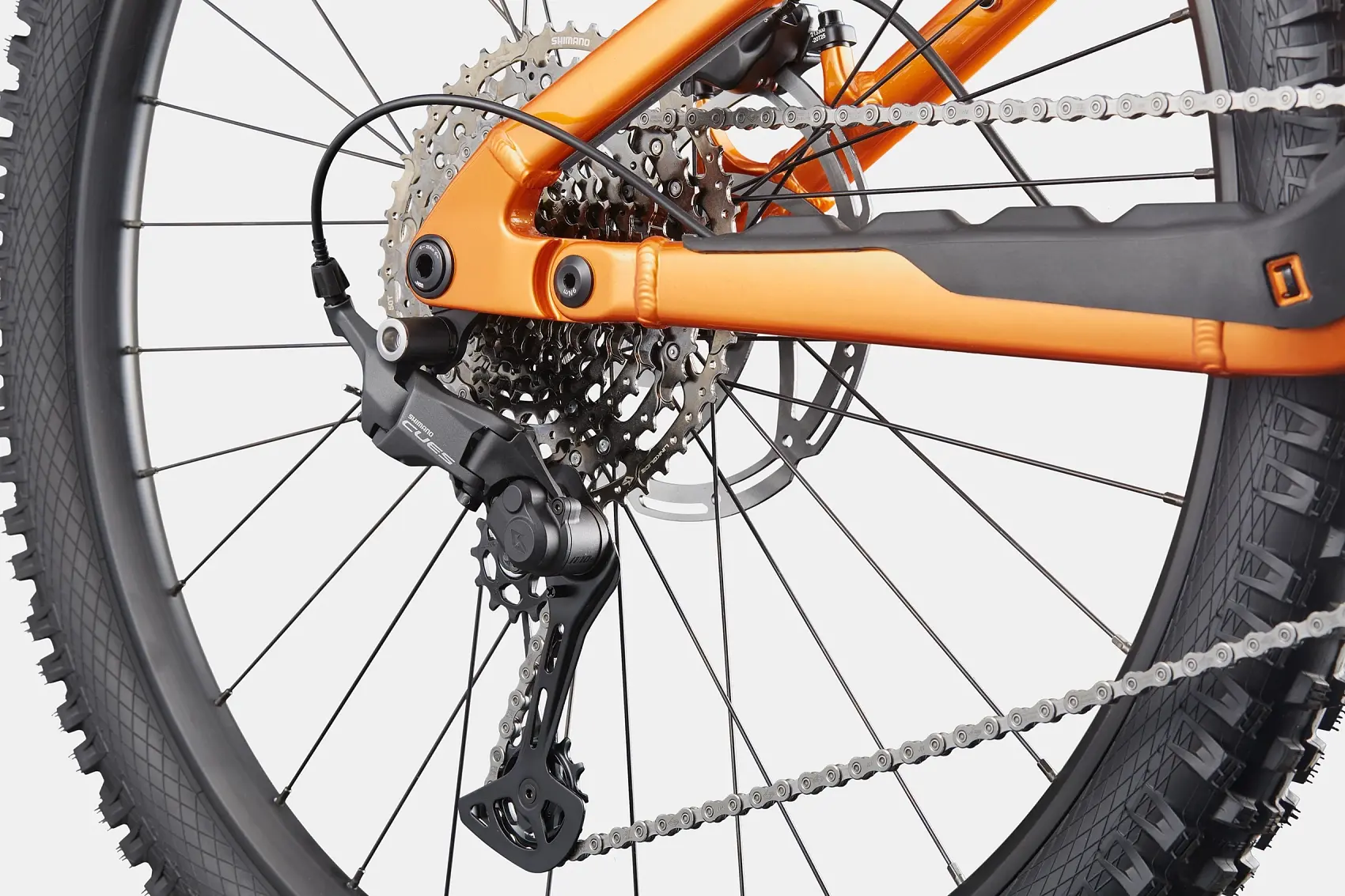

| Rear Derailleur | Shimano CUES U6000, LinkGlide |
| Shifters | Shimano CUES U6000, 11-speed, LinkGlide |
| Chain | Shimano LG500, LinkGlide, 11-speed |
| Crank | FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T |
| Rear Cogs | Shimano CUES LG400, LinkGlide, 11-50, 11-speed |
Brakes |
|
| Brakes | Tektro Gemini SL 4-piston hydraulic disc, 203mm rotors |
| Brake Levers | Tektro Gemini SL hydraulic disc |
Wheels |
|
| Rims | WTB ST i30 TCS, 30mm inner width, 32h, tubeless compatible |
| Spokes |
DT Swiss Champion 2.0
|
| Tires |
(F) Maxxis Minion DHF, 29 x 2.6", EXO, tubeless ready / (R) Maxxis Rekon, 29 x 2.6" (27.5x2.6" - size Small), EXO, tubeless ready
|
| Tire Size | 2.4 |
| Wheel Size | 29 |
| Hubs | (F) Shimano TC500, 15x110mm thru-axle / (R) Shimano TC500, 12x148mm thru-axle, centerlock |
Components |
|

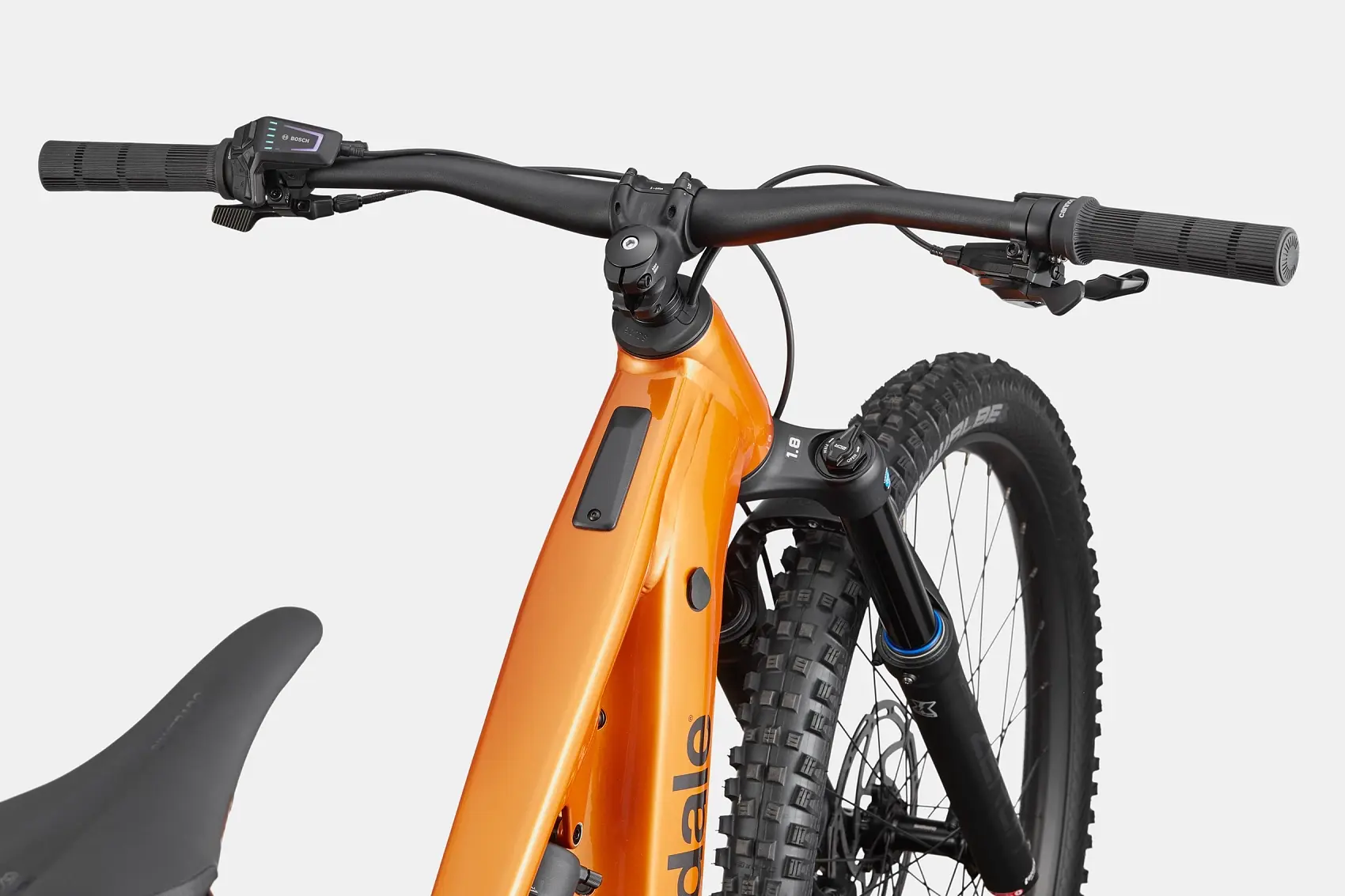

| Handlebar | Cannondale 3 riser, 6061 Alloy, 25mm rise, 8° sweep, 4° rise, 800mm |
| Stem | Cannondale 1, 6061 Alloy, 35.0, 40mm, 0° |
| Grips | Cannondale TaperRidge |
| Saddle | WTB Silverado Medium |
| Seatpost | Cannondale DownLow Dropper, internal routing, 34.9, 150mm (S), 170mm (M), 200mm (L), 230mm (XL) |
| Extra | Bosch PowerMore range extender compatible |
